Startech 24in Internal Usb Motherboard Header To Serial Rs232 Adapter - Usb To Db9 - Usb To Serial
QUICK OVERVIEW
24in Internal USB Motherboard Header to Serial RS232 Adapter - USB to DB9 -
USB to Serial Port
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Serial Cables & Adapters

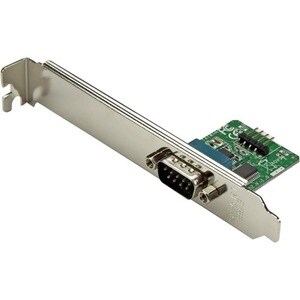

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any
desktop system that is equipped with an available USB motherboard header.Unlike
standard USB to serial cables, this cable is designed for use inside the PC
case, affording an entirely internal solution with no mess or extra adapters
needed.This compact and simple USB adapter offers a cost-effective solution that
bridges the compatibility gap between modern computers and legacy serial
peripherals.Backed by a StarTech.com 2-year warranty and free lifetime technical
support.
Brand Name: StarTech.com
Cable Length: 60.96 cm
Connector on First End: 1 x DB-9 Male Serial
Connector on Second End: 1 x IDC Female IDE
Connector on Second End: USB
Product Type: Data Transfer Cable
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Internal Ports | IDC (10 pin, Motherboard Header) Female |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | Motherboard Header |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 115.2 Kbps |
| Parity | None, Odd, Even, Space, Mark |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Cable Length | 0.6 m [2 ft] |
| Product Height | 12 mm [0.5 in] |
| Product Length | 45 mm [1.8 in] |
| Product Weight | 31 g [1.1 oz] |
| Product Width | 123 mm [4.8 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.12 Linux 2.4.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low profile bracket | |
| USB to RS232 Serial Adapter | |
The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.
Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
