Startech 2u Vented Sliding Rack Shelf W/ Cable Management Arm & Adjustable Mounting Depth - 50lbs/
QUICK OVERVIEW
2U Vented Sliding Rack Shelf w/ Cable Management Arm & Adjustable Mounting
Depth - 50lbs / 22.7kg
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Rack Enclosure Components

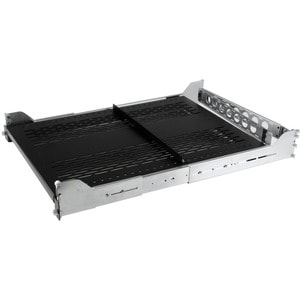

Add a vented, sliding shelf with integrated cable management into virtually any
server rack or cabinet. The UNISLDSHF192 Adjustable Sliding Rack Shelf lets you
add a vented, sliding shelf with cable management into virtually any 4-post
server rack or cabinet.
The adjustable mounting depth design allows the shelf to be installed easily
into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in
(802.2mm). The sliding rails also offer a locking mechanism to stop the shelf
from sliding out too far, or sliding back into the rack before maintenance is
complete.
Offering a weight capacity of up to 50 lbs (22.7 kg), this sliding rack shelf
features a ventilated, cold-rolled steel construction for increased airflow and
durability in your server room or wiring closet installations.
For ease in routing cables neatly through your rack, we've included a reversible
cable management arm that can be attached to the back of the shelf, plus an
adjustable bezel to keep your equipment where you want it on the shelf.
Backed by a StarTech.com 2-year warranty.
Application/Usage: Server
Brand Name: StarTech.com
Colour: Black
Depth: 609.6 mm
Form Factor: Rack-mountable
Height: 86.4 mm
Material: Steel
Product Type: Rack Shelf
Rack Depth: 802.64 mm
Rack Height: 2U
Width: 482.6 mm
| Hardware | |
| Cable Management | Yes |
| Industry Standards | EIA RS310-D |
| Mounting Options | Front Mount (Front and Rear) |
| U Height | 2U |
| Packaging Information | |
| Shipping (Package) Weight | 9.9 kg [21.8 lb] |
| Performance | |
| Weight Capacity (Stationary) | 22.7 kg [50.1 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 609.6 mm [24 in] |
| External Height | 85.2 mm [3.4 in] |
| External Width | 483 mm [19 in] |
| Maximum Mounting Depth | 802.2 mm [31.6 in] |
| Minimum Mounting Depth | 702.2 mm [27.6 in] |
| Rail Thickness | 2 mm [0.1 in] |
| What's in the Box | |
| Included in Package | Cable Management Assembly |
| Ear Hook and Slide Assembly (Left / Right) | |
| Ear Hook Bracket (Left / Right) | |
| Instruction Manual | |
| Shelf Assembly | |
The UNISLDSHF192 Adjustable Sliding Rack Shelf lets you add a vented, sliding shelf with cable management into virtually any 4-post server rack or cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The adjustable mounting depth design allows the shelf to be installed easily into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in (802.2mm). The sliding rails also offer a locking mechanism to stop the shelf from sliding out too far, or sliding back into the rack before maintenance is complete.
Offering a weight capacity of up to 50 lbs (22.7 kg), this sliding rack shelf features a ventilated, cold-rolled steel construction for increased airflow and durability in your server room or wiring closet installations.
For ease in routing cables neatly through your rack, we've included a reversible cable management arm that can be attached to the back of the shelf, plus an adjustable bezel to keep your equipment where you want it on the shelf.
Backed by a StarTech.com 2-year warranty.
