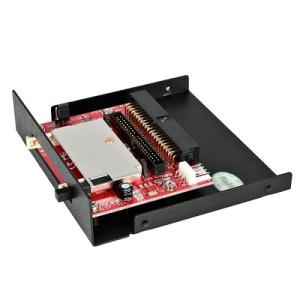

Startech 3.5in Drive Bay Ide To Single Cf Ssd Adapter Card Reader 35baycf2ide
3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader
by Startech
Category: Storage
Sub Category: Storage Accessories & Components
Product Type: Drive Mounting Hardware
This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash
(CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro
drive media as if it were an IDE hard drive.The CF/IDE adapter can be installed
in the computer case through simple mounting in an available 3.5in drive bay,
for connection to the computer IDE bus through either a 40 or 44-pin
connection.Designed and constructed to provide a reliable media card platform,
the CF IDE adapter is backed by StarTech.com's 2-year warranty.
Brand Name: StarTech.com
Media Supported: CompactFlash Type I
Media Supported: CompactFlash Type II
Media Supported: Microdrive
Product Type: Flash Reader
| Connector(s) | |
| Drive Connectors | CompactFlash (50 pin) Slot |
| Host Connectors | IDE (40 Pin, EIDE/PATA) Male |
| SP4 (4 pin, Small Drive Power) Male | |
| Environmental | |
| Humidity | 5% ~ 85% RH |
| Operating Temperature | -55?C to 85?C (-67?F to 185?F) |
| Storage Temperature | -55?C to 85?C (-67?F to 185?F) |
| Hardware | |
| Interface | IDE |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| Performance | |
| Maximum Data Transfer Rate | 133 MBps |
| Memory Media Type | CF (Compact Flash I/II Card) |
| Physical Characteristics | |
| Product Height | 25 mm [1 in] |
| Product Length | 97 mm [3.8 in] |
| Product Weight | 145 g [5.1 oz] |
| Product Width | 100 mm [3.9 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards. |
| What's in the Box | |
| Included in Package | 3.5? Enclosure |
| Compact Flash to IDE Adapter | |
| Full Profile Expansion Slot Bracket | |
| Instruction Manual | |
| SP4 to LP4 Molex Power Cable | |
This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive.
The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection.
Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.
