Startech 3 Ft Panel Mount Usb Cable - Usb A To Motherboard Header Cable F/ F - Usb A-female To
QUICK OVERVIEW

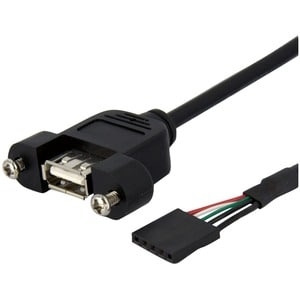

3 ft Panel Mount USB Cable - USB A to Motherboard Header Cable F/F - USB
A-Female to USB Header Adapter - USB-A (F) Port, 3ft
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Usb Cables & Adapters
Connect a panel mount USB-A port to your motherboard header. The USBPNLAFHD3 3ft
Panel Mount USB Cable enables you to add a well-secured, easy to access USB 2.0
port to your PC, offering a convenient solution for connecting bootable thumb
drives or authentication fobs etc. to the motherboard USB connection.
The adapter features one female USB header connector and one female panel mount
USB-A port and gives you an extension of 3ft, enabling you to place the cable as
needed within the system case.
The USBPNLAFHD3 is backed by StarTech.com's lifetime warranty for guaranteed
reliability.
Brand Name: StarTech.com
Cable Length: 91.44 cm
Cable Type: USB
Colour: Black
Connector on First End: 1 x Type A Female USB
Connector on Second End: 1 x IDC Female USB Header
Packaged Quantity: 1
Product Type: Data Transfer Cable
| Physical Characteristics | |
| Product Height | 10 mm [0.4 in] |
| Product Length | 0.9 m [3 ft] |
| Product Weight | 34 g [1.2 oz] |
| Product Width | 38 mm [1.5 in] |
| Wire Gauge | 24/28 AWG |
| What's in the Box | |
| Included in Package | 3 ft Panel Mount USB Cable - USB A to Motherboard Header Cable F/F |
| Physical Characteristics | |
| Connector Style | Straight |
| Color | Black |
| Cable Length | 0.9 m [3 ft] |
| Packaging Information | |
| Shipping (Package) Weight | 40 g [1.4 oz] |
| Package Quantity | 1 |
| Hardware | |
| Connector Plating | Nickel |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Environmental | |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 30%-50% RH |
| Connector(s) | |
| Connector B | IDC (5 pin, Motherboard Header) Female |
| Connector A | USB Type-A (4 pin) USB 2.0 Female |
The USBPNLAFHD3 3ft Panel Mount USB Cable enables you to add a well-secured, easy to access USB 2.0 port to your PC, offering a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB connection.
The adapter features one female USB header connector and one female panel mount USB-A port and gives you an extension of 3ft, enabling you to place the cable as needed within the system case.
The USBPNLAFHD3 is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
