Startech 3 Port 2b 1a 1394 Pci Express Firewire Card Adapter - 1394 Fw Pcie Firewire 800/ 400 Card
QUICK OVERVIEW
3 Port 2b 1a 1394 PCI Express FireWire Card Adapter - 1394 FW PCIe FireWire
800 / 400 Card
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Firewire Cables & Adapters

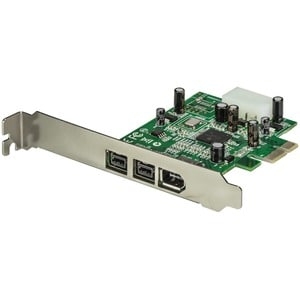

Add 2 native FireWire 800 ports to your computer through a PCI Express expansion
slot.This 3 Port PCI Express FireWire adapter card can be installed in a PCI
Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a
(FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of
FireWire devices (e.g. DV camcorders, external hard drives, digital cameras,
etc.).The 2b, 1a card features a native (single chip) PCI Express chipset -
resulting in faster, more reliable and cost effective performance than expansion
cards that utilize a "bridge" chip.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Product Type: FireWire Adapter
Total Number of FireWire/i.LINK Ports: 3
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | FireWire 400 (6 pin, IEEE 1394a) Female |
| FireWire 800 (9 pin, IEEE 1394b) Female | |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?C) |
| Storage Temperature | -20?C to 90?C (-4?F to 194?C) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Texas Instruments - XIO2213B |
| Industry Standards | IEEE-1394/1394A/1394B OHCI PCI Express 1.1 |
| Interface | FireWire 400 (1394a) |
| FireWire 800 (1394b) | |
| Ports | 3 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Maximum Data Transfer Rate | 800 Mbps 400 Mbps |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 85 mm [3.3 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Width | 18 mm [0.7 in] |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS? 10.6 to 10.13 Linux 3.5.x to 4.4.x LTS Versions Only |
| Special Notes / Requirements | |
| Note | The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher |
| What's in the Box | |
| Included in Package | FireWire cable |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express FireWire Card | |
| Software CD | |
This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
