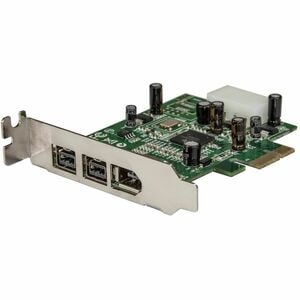

Startech 3 Port 2b 1a Low Profile 1394 Pci Express Firewire Card Adapter - Pci Express 1394a - PEX1394B3LP
QUICK OVERVIEW
This 3 Port PCI Express FireWire card comes equipped with a low profile
bracket for installation in small form factor PCs, and includes an optional
full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire
800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing
broad compatibility with a wide range of FireWire devices (e.g. DV camcorders,
external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI
Express chipset, which provides faster, more reliable and cost-effective
performance than expansion cards that utilize a "bridge" chip.
ADD FIREWIRE PORTS TO COMPUTER
Based on native PCI Express chip design, the StarTech PEX1394B3LP card adds two
9-pin FireWire 800 ports and one 6-pin FireWire 400 port to your PCI Express
equipped computer for easy connection to FireWire enabled devices, such as
digital camcorder, external hard drives, and more.
LOW/FULL PROFILE BRACKETS INCLUDED
Pre-configured for low profile system, this card also includes full profile
bracket for versatility.
Brand
StarTech
Model
PEX1394B3LP
Spec
Type
PCI Express to 1394 Card
External 1394 Ports
3x 1394 Ports
Standard
1394A x 1/1394B x 2
Data Transfer Rate
FireWire 800 IEEE-1394b - 800 Mbit/s
Operating Systems Supported
Windows 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit), Mac G5
OS 10.2.4 and up, and Linux
Physical Spec
Dimensions
0.71" x 4.72" x 3.54"
Weight
0.11 lbs.
Features
Features
Configured with a low profile bracket attached and includes and extra full
profile bracket
Hot-swapping feature allows you to connect and disconnect devices without
powering down the system
Maximum data transfer rate of 800 Mbps
Compliant with 1394 Open Host Controller Interface Specification 1.1
PCI Express Base Specification Revision 1.1 compliant
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | FireWire 400 (6 pin, IEEE 1394a) Female |
| FireWire 800 (9 pin, IEEE 1394b) Female | |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?C) |
| Storage Temperature | -20?C to 90?C (-4?F to 194?C) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | Texas Instruments - XIO2213B |
| Industry Standards | IEEE-1394/1394A/1394B OHCI PCI Express 1.1 |
| Interface | FireWire 800 (1394b) |
| Ports | 3 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 190 g [6.7 oz] |
| Performance | |
| Maximum Data Transfer Rate | 800 Mbps |
| Type and Rate | FireWire 800 IEEE-1394b - 800 Mbit/s |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 85 mm [3.3 in] |
| Product Weight | 40 g [1.4 oz] |
| Product Width | 58 mm [2.3 in] |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS? 10.6 to 10.13 Linux 3.5.x to 4.4.x LTS Versions Only |
| Special Notes / Requirements | |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher |
| What's in the Box | |
| Included in Package | FireWire Cable |
| Full Profile Bracket | |
| Instruction Manual | |
| PCI Express FireWire Card | |
| Software CD | |
This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
