Startech 3ft Mini Displayport To Dvi Active Adapter Converter Cable 3 Foot Active Mdp To Dvi M/ 200784
QUICK OVERVIEW

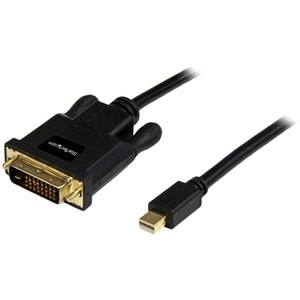

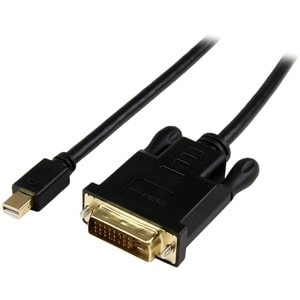

3ft Mini DisplayPort to DVI Active Adapter Converter Cable 3 foot Active mDP
to DVI M/M Cable for Mac or PC - 0.9m Active Mini DisplayPort to DVI Adapter
Cable 2560x1600 Black
by Startech
Category: Cables
Sub Category: A/V Cables & Adapters
Product Type: Audio & Video Cables & Adapters
Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active
adapter. The MDP2DVIMM3BS 3ft active Mini DisplayPort to DVI adapter cable lets
you directly connect your Mini DP video source (Laptop, Macbook®, Ultrabook™
etc.) directly to a nearby DVI monitor or projector, saving the expense of
additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the
active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode
DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can
be used with graphics cards that are not capable of outputting multimode DP++
signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to
2560x1600.
The MDP2DVIMM3BS is backed by a 2-year StarTech.com warranty and free lifetime
technical support.
Brand Name: StarTech.com
Cable Length: 91.44 cm
Cable Type: DisplayPort/DVI
Colour: Black
Connector on First End: 1 x Mini DisplayPort Male Digital Audio/Video
Connector on Second End: 1 x DVI-D Male Digital Video
Packaged Quantity: 1
Product Type: Video Cable
Connector(s) | |
Connector A | Mini-DisplayPort (20 pin) Male |
Connector B | DVI-D (25 pin) Male |
Environmental | |
Humidity | 40%-85%RH |
Operating Temperature | 0?C to 60?C (32?F to 140?F) |
Storage Temperature | -10?C to 70?C (14?F to 158?F) |
Hardware | |
Active or Passive Adapter | Active |
Adapter Style | Cable Adapters |
Audio | No |
Chipset ID | Parade - PS171 |
Converter Type | Cable Adapters |
Packaging Information | |
Shipping (Package) Weight | 84 g [3 oz] |
Performance | |
Maximum Cable Length | 0.9 m [3 ft] |
Maximum Digital Resolutions | 1920 x 1200 |
Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
Wide Screen Supported | Yes |
Physical Characteristics | |
Cable Length | 0.9 m [3 ft] |
Color | Black |
Product Height | 15 mm [0.6 in] |
Product Length | 920 mm [36.2 in] |
Product Weight | 93.2 g [3.3 oz] |
Product Width | 40 mm [1.6 in] |
Special Notes / Requirements | |
System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter. |
This adapter is not compatible for use with the Apple Cinema Display. | |
What's in the Box | |
Included in Package | Active DisplayPort to DVI Adapter |
The MDP2DVIMM3BS 3ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (Laptop, Macbook®, Ultrabook™ etc.) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 2560x1600.
The MDP2DVIMM3BS is backed by a 2-year StarTech.com warranty and free lifetime technical support.
