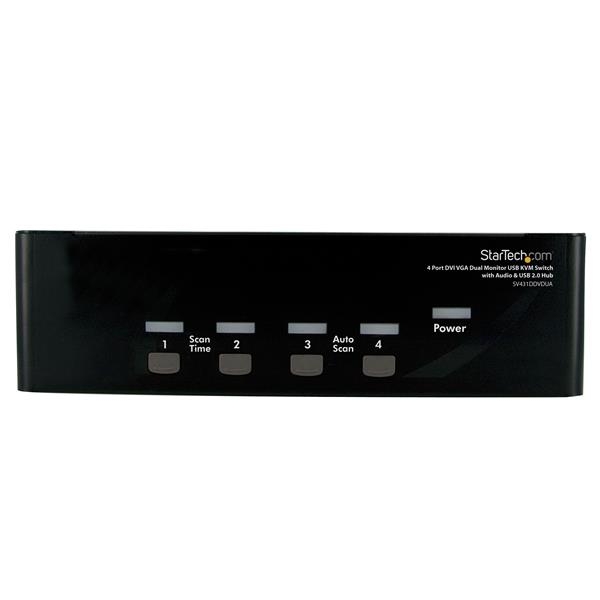

Startech 4 Port Dvi Vga Dual Monitor Kvm Switch Usb With Audio And Usb 2.0 Hub Sv431ddvdua
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Brand Name: StarTech.com
DVI: Yes
Number of Computers Supported: 4
Product Type: KVM Switchbox
General Information
Brand Name: StarTech.com
Manufacturer Part Number: SV431DDVDUA
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Product Model: SV431DDVDUA
Product Name: 4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub
Product Type: KVM Switchbox
Interfaces/Ports
DVI: Yes
Number of DVI Ports: 5
Miscellaneous
Additional Information:
High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration.
Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
Absolutely no software or drivers required providing a completely OS independent KVM solution.
Physical Characteristics
Depth: 130 mm
Height: 59.9 mm
Weight (Approximate): 1.24 kg
Width: 220 mm
Technical Information
Number of Computers Supported: 4
Video
Maximum Video Resolution: 1920 x 1440
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB B (4 pin) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 2 |
| PC Interface | USB |
| PC Video Type | DVI+VGA |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | Green - PC Detected |
| Green - Power | |
| Red - PC Indicator | |
| Packaging Information | |
| Shipping (Package) Weight | 1.8 kg [4 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1400 |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130 mm [5.1 in] |
| Product Height | 60 mm [2.4 in] |
| Product Length | 163 mm [6.4 in] |
| Product Weight | 1236 g [43.6 oz] |
| Product Width | 220 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source. |
| What's in the Box | |
| Included in Package | 4-port KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/EU/UK/AU) | |
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
