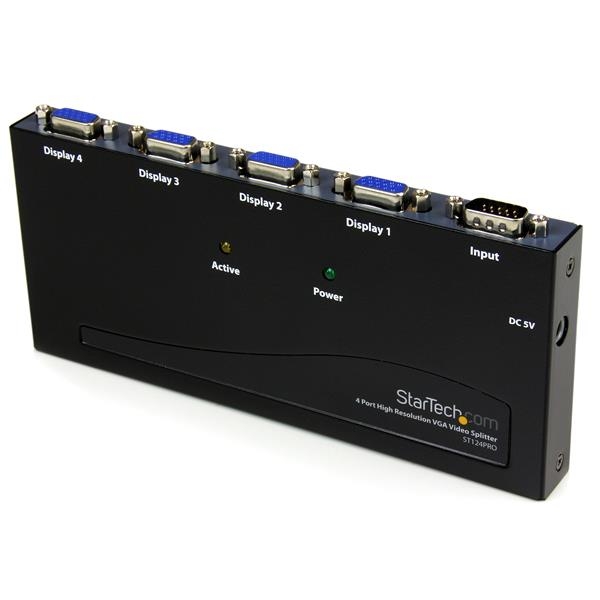

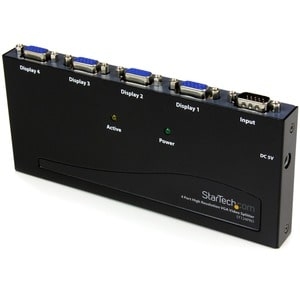

Startech 4 Port High Resolution Vga Video Splitter - 350 Mhz St124pro
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Device Supported: Computer
Maximum Operating Distance: 64.01 m
Number of Displays Supported: 4
Number of Input Devices Supported: 1
Product Family: VideoView
Product Type: Video Switchbox
General Information
Brand Name: StarTech.com
Manufacturer Part Number: ST124PRO
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Line: VideoView
Product Name: 4 Port High Res VGA Video Splitter
Product Type: Video Switchbox
Media & Performance
Maximum Operating Distance: 64.01 m
Miscellaneous
Additional Information:
Daisy chainable for almost unlimited expansion
Uses standard monitor extension cables
DDC compatible (all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1)
Physical Characteristics
Depth: 116.8 mm
Height: 40.6 mm
Weight (Approximate): 1.15 kg
Width: 172.7 mm
Technical Information
Device Supported: Computer
Number of Displays Supported: 4
Number of Input Devices Supported: 1
Video
Graphics Modes: QXGA
SVGA
VGA
XGA
Maximum Video Bandwidth: 350 MHz
Maximum Video Resolution: 2048 x 1536
| Connector(s) | |
| Connector Type(s) | VGA (15 pin, High Density D-Sub) Female |
| VGA (15 pin, High Density D-Sub) Male | |
| Environmental | |
| Humidity | 0~80% RH non-condensing |
| Operating Temperature | 5?C to 40?C (41?F to 104?F) |
| Hardware | |
| Industry Standards | DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1 |
| Ports | 4 |
| Regulatory Approvals | FCC Part 15 Class A, CE Mark |
| Packaging Information | |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| Bandwidth | 350MHz |
| General Specifications | Male to Female VGA extension cable required (MXT101HQ) |
| Maximum Analog Resolutions | 2048x1536 @ 80Hz |
| Maximum Cable Length | 64 m [210 ft] |
| Physical Characteristics | |
| Color | Black |
| Product Height | 21 mm [0.8 in] |
| Product Length | 182 mm [7.2 in] |
| Product Weight | 1085 g [38.3 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Input Current | 0.2A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 0.6 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 3 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 4 Port High Res. Video Splitter |
| Instruction Manual | |
| Power Adapter | |
| Rubber Feet | |
The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.Male to Female VGA extension cable required (MXT101HQ)
