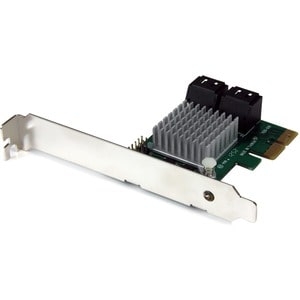

4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD
Tiering - PCIe SATA 3 Controller Adapter
by Startech
Category: Storage
Sub Category: Drive Controllers
Product Type: Sas (Serial Attached Scsi) Raid Drive Co
Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2
slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo
adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering
multiple internal 6Gbps connections for high-performance hard drives and Solid
State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets
you balance the performance advantages of SSD storage with the
cost-effectiveness and large capacity of standard hard drives. By combining SSD
and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly
works in the background to identify and move frequently accessed files to the
faster SSD drive(s) for improved data throughput - up to 80% of SSD performance!
(Note: The HyperDuo automatic storage tiering feature is compatible with
Windows® XP, Vista, 7 and 8 only)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple
SATA drives to be connected to one port over a single cable, for a total of 7
drives (Up to 4 drives through PM on one port, and a single drive to the
remaining 3 ports). Plus, the SATA controller card offers an effective hardware
RAID solution, with native RAID (0, 1, 1+0) support.
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free
lifetime technical support.
Brand Name: StarTech.com
Controller Type: Serial ATA/600
Form Factor: Plug-in Card
Host Interface: PCI Express 2.0 x2
Product Type: SATA Controller
RAID Levels: 0
RAID Levels: 1
RAID Levels: 1+0
RAID Levels: JBOD
RAID Supported: Yes
Total Number of SATA Ports: 4
| What's in the Box | |
| Included in Package | Instruction Manual |
| Low Profile Bracket | |
| PCIe SATA Controller Card | |
| Driver CD | |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots) |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total. Port Multiplier not supported in Mac OS. Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016
|
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 3.5.x to 4.11.x LTS versions only |
| Physical Characteristics | |
| Product Width | 120 mm [4.7 in] |
| Product Weight | 50 g [1.8 oz] |
| Product Length | 70 mm [2.8 in] |
| Product Height | 20 mm [0.8 in] |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Supported RAID Modes | RAID 10 (1+0, Striped set of Mirrored Subset) |
| RAID 1 (Mirrored Disks) | |
| RAID 0 (Striped Disks) | |
| Connector(s) | |
| Connector Type(s) | PCI Express x2 Male |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 145 g [5.1 oz] |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| LBA support | 48-bit |
| Max Drive Capacity | Currently tested up to 4TB per drive |
| Number of Drives Supported Through Port Multiplier | 1 to 4 |
| Number of Ports That Support Port Multiplier | 4 (can only use 1 PM at a time) |
| Port Multiplier | Yes |
| RAID | Yes |
| Supported RAID Modes | JBOD - (Just a Bunch of Disks) |
| Connector(s) | |
| Internal Ports | SATA (7 pin, Data) Plug |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5?C ~ 50?C (41?F ~ 122?F) |
| Storage Temperature | -25?C ~ 70?C (-13?F ~ 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Marvell - 88SE9230 |
| Industry Standards | PCI Express 2.0 |
| Serial ATA 3.0 specification | |
| Interface | SATA |
| Port Style | Integrated on Card |
| Ports | 4 |
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Throughput Benchmark
| Drive configuration | Throughput | Drive size |
|---|---|---|
| 1 x HDD | 112.81 MB/s | 2 TB |
| 1 x SSD | 490.28 MB/S | 120 GB |
| 1 x HDD + 1 x SSD HyperDuo (Safe Mode) | 489.28 MB/s | 2 TB |
| 1 x HDD + 2 x SSD HyperDuo (Safe Mode) | 715.13 MB/s | 2 TB |
| Drives Used: SSD: OCZ Vertex 3 Series 2.5? 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5? 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 | ||
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
