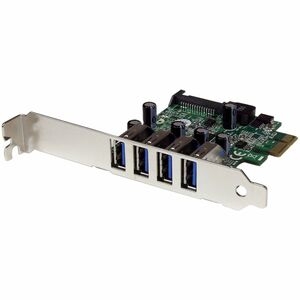

Startech 4 Port Pci Express Pcie Superspeed Usb 3.0 Controller Card Adapter With Uasp - Sata Power
QUICK OVERVIEW
Add 4 external USB 3.0 ports to a low profile or standard computer through
PCI Express
Compatible with Lenovo ThinkCentre M93p / Dell OptiPlex 3010
4 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP / 4 Port USB 3.0
Controller Card
USB 3 PCIe Card / PCIe USB 3.0 Card
SATA Powered USB 3.0 PCI Express Card / PCI Express USB 3.0 Expansion Card w/
UASP
Desktop PCIe USB 3 Expansion Card / Add USB 3.0 Ports to a Desktop
USB 3.0 UASP Card includes a Low Profile/half-height bracket
Brand
StarTech
Model
PEXUSB3S4V
Spec
Type
PCI Express to USB Card
Internal Ports
1 x SATA
Standard
USB 3.0
Data Transfer Rate
Up to 5.0 Gbps
Compatibility
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista
(32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
Physical Spec
Dimensions
0.7" x 2.7" x 3"
Weight
1.6 oz.
Features
Features
4 external USB 3.0 ports in a stacked layout
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95
specifications
Built-in optional SATA power connector for bus-powered USB devices
Optionally provides up to 900mA per USB port
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
Compliant with PCI Express 2.0 specifications
Includes a Low Profile/half-height installation bracket
Add 4 external USB 3.0 ports to a low profile or standard computer through PCI
Express
Compatible with Lenovo ThinkCentre M93p / Dell OptiPlex 3010
4 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP / 4 Port USB 3.0
Controller Card
USB 3 PCIe Card / PCIe USB 3.0 Card
SATA Powered USB 3.0 PCI Express Card / PCI Express USB 3.0 Expansion Card w/
UASP
Desktop PCIe USB 3 Expansion Card / Add USB 3.0 Ports to a Desktop
USB 3.0 UASP Card includes a Low Profile/half-height bracket
Packaging
Package Contents
1 - PCI Express USB 3.0 Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 68 mm [2.7 in] |
| Product Length | 75 mm [3 in] |
| Product Weight | 45 g [1.6 oz] |
| Product Width | 19 mm [0.7 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
| System and Cable Requirements | Available PCI Express expansion slot |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express USB 3.0 Card | |
| Hardware | |
| Ports | 4 |
| Port Style | Integrated on Card |
| Interface | USB 3.0 |
| Chipset ID | Renesas/NEC - ?PD720201 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 20% ~ 80% RH |
| Connector(s) | |
| Internal Ports | SATA Power (15 pin) Plug |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Connector Type(s) | PCI Express x1 Male |
The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
