Startech 4 Port Pci Express Usb 3.0 Card - 3 External And 1 Internal - Native Os Support In Windows
QUICK OVERVIEW

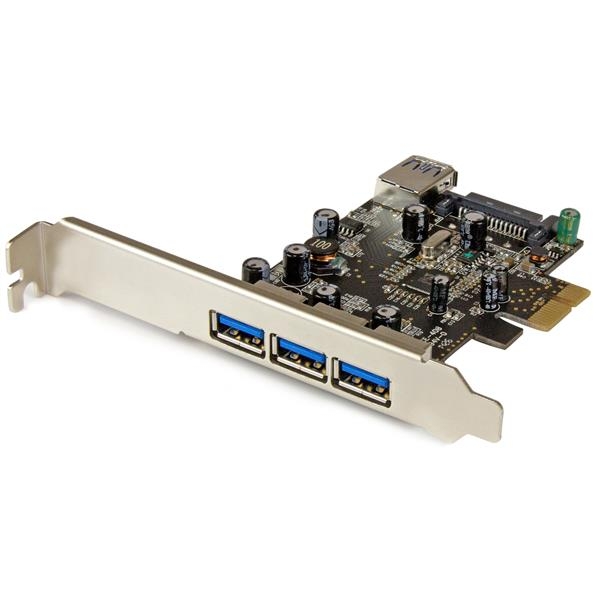

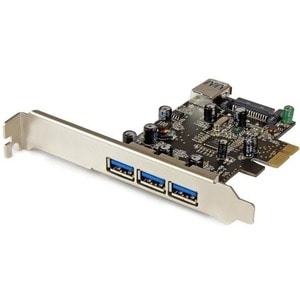

Add four USB 3.0 ports - three external and one internal port -
to your computer. Here's a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.
Enjoy versatile use of your USB devices
With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy-access to commonly used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device, such as a flash drive inside your computer case, providing added security and convenience.
USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.
Get up and running in little time
Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows® 8.1, 8 and 7.
For painless installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.
UASP support for more efficient data transfers
This high-performance USB 3.0 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.0, when paired with UASP-enabled enclosure.
The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express 2.0 x1
Product Type: USB Adapter
Total Number of USB Ports: 4
General Information
Brand Name: StarTech.com
Manufacturer Part Number: PEXUSB3S42
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add four USB 3.0 ports - three external and one internal port -
to your computer. Here's a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.
Enjoy versatile use of your USB devices
With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy-access to commonly used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device, such as a flash drive inside your computer case, providing added security and convenience.
USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.
Get up and running in little time
Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows® 8.1, 8 and 7.
For painless installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.
UASP support for more efficient data transfers
This high-performance USB 3.0 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.0, when paired with UASP-enabled enclosure.
The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Packaged Quantity: 1
Product Name: 4 Port PCI Express USB 3.0 Card - 3 External and 1 Internal
Product Type: USB Adapter
Interfaces/Ports
Number of USB 3.0 Ports: 4
Total Number of USB Ports: 4
Miscellaneous
Platform Supported: Linux
PC
Physical Characteristics
Form Factor: Plug-in Card
Height: 119.4 mm
Length: 86.4 mm
Weight (Approximate): 59.5 g
Width: 17.8 mm
Technical Information
Host Interface: PCI Express 2.0 x1
| Hardware | |
| Port Style | Integrated on Card |
| Ports | 4 |
| Interface | USB 3.0 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0 |
| Chipset ID | VIA/VLI - VL805 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | 20~80% RH |
| Connector(s) | |
| Internal Ports | USB Type-A (9 pin) USB 3.0 Female |
| SATA Power (15 pin) Plug | |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Connector Type(s) | PCI Express x1 Male |
| Packaging Information | |
| Shipping (Package) Weight | 143 g [5 oz] |
| Special Notes / Requirements | |
| System and Cable Requirements | SATA power connector (recommended, but optional) |
| What's in the Box | |
| Included in Package | 4 Port PCI Express USB 3.0 Card |
| Driver CD | |
| Instruction Manual | |
| Low-Profile Bracket | |
| Performance | |
| Maximum Cable Length | 3 m [9.8 ft] |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 24,000 hours |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 87 mm [3.4 in] |
| Product Weight | 59 g [2.1 oz] |
| Product Width | 19 mm [0.7 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.31 to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps. |
| System and Cable Requirements | PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16) |
Here’s a cost-effective solution for adding USB 3.0 connectivity to your computer. This 4-port PCIe USB 3.0 card gives you three external ports and one internal port, for the ultimate connection flexibility.
Enjoy convenient USB 3.0 port availability
With three external USB 3.0 ports you can connect more devices to your computer. The card provides easy access to commonly-used peripherals such as your tablet and external hard drive. It also features an internal USB port that lets you connect a device such as a flash drive inside your computer case, providing added security and convenience.
USB 3.0 gives you fast access to your files with data transfer rates up to 5 Gbps. Plus it's backward compatible with USB 2.0 and 1.x devices, which eliminates the cost and aggravation of upgrading your existing devices.
Get up and running quickly
Setup is a breeze with native operating system support. The USB 3.0 adapter card automatically installs in Windows® 8.1, 8 and 7.
For convenient installation, this PCI Express USB 3.0 card features a dual-profile design that can be installed in almost any type of computer. It comes equipped with a standard profile bracket and also includes a low-profile bracket for installation in small form-factor/half-height systems.
UASP support for more efficient data transfers
This high-performance USB 3.0 card is enhanced with UASP support, which can perform ~70% faster read speed and ~40% faster write speed over traditional USB 3.0, when paired with UASP-enabled enclosure.
The PEXUSB3S42 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1, 8, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
