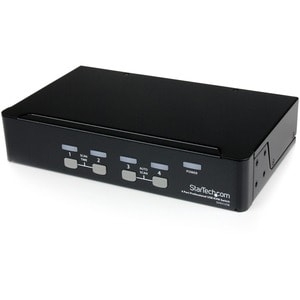

Startech 4 Port Professional Vga Usb Kvm Switch With Hub Sv431usb
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple
control of up to four computers from a single monitor/display and USB peripheral
set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share
connected USB peripherals between the four controlled PC/Mac computers as though
the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features
a 1U rack-mountable form factor and rear port connection to master and slave
computers, allowing you to make the necessary device connections without
disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications
at up to 1920x1440 and provides a smooth operating experience when controlling
mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the
expense of duplicate devices
Rugged, solid steel rack-mountable case offers durability even in harsh
environments
Absolutely no software or drivers required providing a completely OS independent
KVM solution
Warranty 3 Years
Hardware
Audio No
Cables Included No
Daisy-Chain No
KVM Ports 4
Multi-Monitor No
PC Interface USB
PC Video Type VGA
Rack-Mountable Optional
U Height 1U
Performance
Auto Scan 3, 8, 15 & 30 seconds
DVI Support No
IP Control No
Maximum Analog Resolutions 1920 x 1440
Maximum Cable Length 16.4 ft [5 m]
Maximum Number of Users 1
MTBF 82,506 Hours
Connector(s)
Console Interface(s) 1 - VGA (15 pin; High Density D-Sub) Female
4 - USB A (4 pin) Female
Host Connectors 4 - USB B (4 pin) Female
4 - VGA (15 pin; High Density D-Sub) Male
Software
OS Compatibility OS independent; No software or drivers required
Special Notes / Requirements
Note In order to use the SV431USB with a USB keyboard that has additional USB
ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB
hub, an additional power supply may be required
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1.7 in [44 mm]
Product Length 8.7 in [220 mm]
Product Weight 31.8 oz [900 g]
Product Width 5.1 in [130 mm]
Power
Center Tip Polarity Positive
Input Current 0.4A
Input Voltage 110 ~ 240 AC
Output Current 2A
Output Voltage 5 DC
Plug Type N
Power Source Not Included (not required for standard applications)
Packaging Information
Shipping (Package) Weight 3 lb [1.3 kg]
What's in the Box
Included in Package 1 - 4 Port VGA USB KVM Switch
4 - Rubber Feet
1 - Instruction Manual
Connector(s) | |
Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
VGA (15 pin, High Density D-Sub) Female | |
Host Connectors | USB B (4 pin) Female |
VGA (15 pin, High Density D-Sub) Male | |
Hardware | |
Audio | No |
Cables Included | No |
Daisy-Chain | No |
KVM Ports | 4 |
Number of Monitors Supported | 1 |
PC Interface | USB |
PC Video Type | VGA |
Rack-Mountable | Optional |
U Height | 1U |
Packaging Information | |
Shipping (Package) Weight | 1.3 kg [3 lb] |
Performance | |
Auto Scan | 3, 8, 15 & 30 seconds |
DVI Support | No |
Hot-Key Selection | No |
IP Control | No |
Maximum Analog Resolutions | 1920 x 1440 |
Maximum Cable Length | 5 m [16.4 ft] |
Maximum Number of Users | 1 |
MTBF | 82,506 Hours |
On-Screen Display | No |
Port Selection Support | Push Button |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 44 mm [1.7 in] |
Product Length | 220 mm [8.7 in] |
Product Weight | 900 g [31.8 oz] |
Product Width | 130 mm [5.1 in] |
Power | |
Center Tip Polarity | Positive |
Input Current | 0.4A |
Input Voltage | 110V-240V AC |
Output Current | 2A |
Output Voltage | 5 DC |
Plug Type | N |
Power Source | Not Included (not required for standard applications) |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
Note | In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required |
What's in the Box | |
Included in Package | 4 Port VGA USB KVM Switch |
Instruction Manual | |
Rubber Feet |
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
