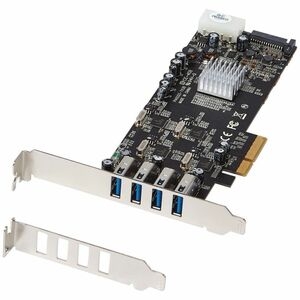

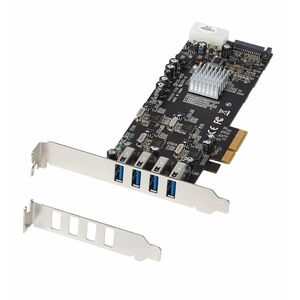

Startech 4 Port Quad Bus Pci Express (pcie) Superspeed Usb 3.0 Card Adapter With Uasp - Sata/ Lp4 PEXUSB3S44V
QUICK OVERVIEW
4 Port Quad Bus PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP
- SATA/LP4 Power - Quad Port USB 3.0 PCIe Controller - Quad Bus USB 3.0 PCI
Express Card - Dual Profile
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Usb Cables & Adapters
Add four USB 3.0 ports with four independent channels, LP/SATA power, and
charging support to your PC through a PCI Express slot. The PEXUSB3S44V 4-Port
PCI Express USB 3.0 Card lets you add four, dedicated 5 Gbps USB 3.0 ports to
your PCIe x4-enabled PC. This independent port architecture improves USB 3.0
performance by transferring data on four individual channels to your computer,
giving you faster file transfers.
When multiple devices are connected, traditional single bus USB 3.0 cards share
your maximum bandwidth between all ports. By employing four host controller
chipsets, each port operates on a separate independent transmission channel.
Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and
effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller
performs up to 70% faster than conventional USB 3.0 when paired with a UASP
supported enclosure (Note: UASP requires a compatible operating system). Using a
more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP
technology optimizes transfers by allowing multiple commands to be processed
simultaneously, significantly increasing transfer speeds for less wait time on
data transfers. See our UASP test results below for further details.
For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or
LP4 power connector to connect to your system power supply and deliver up to
900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). The
USB 3.0 card also supports USB Battery Charging Specification 1.2 (Apple Mode
only), letting you charge compatible Apple devices (iPhones and iPads) faster
than a standard USB 3.0 port.
The controller card is compliant with USB 3.0 standards while offering backward
compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the
USB 3.0 PCIe card is equipped with a standard profile bracket and includes a
low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or
later. In testing UASP performed with up to a 70% faster read / 40% faster write
speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required
processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com
add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III
solid state drive.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x4
Product Type: USB Adapter
Total Number of USB Ports: 4
| Hardware | |
| Port Style | Integrated on Card |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 204 g [7.2 oz] |
| Performance | |
| Maximum Cable Length | 3 m [9.8 ft] |
| Maximum Data Transfer Rate | 5Gbps per port - 20Gbps Total |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 167 mm [6.6 in] |
| Product Weight | 90 g [3.2 oz] |
| Product Width | 15 mm [0.6 in] |
| Software | |
| OS Compatibility | Windows? Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.31 to 4.11.x LTS versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x4 or greater slot |
| What's in the Box | |
| Included in Package | 4 Port PCIe USB Card |
| Driver CD | |
| Instruction Manual | |
| Low Profile Bracket | |
| Hardware | |
| Interface | USB 3.0 |
| Industry Standards | USB 3.0 Specification Rev. 1.0 USB Battery Charging Specification Rev. 1.2 (Apple Mode only) PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0 |
| Chipset ID | Renesas/NEC - ?PD720202 |
| Card Type | Standard Profile (LP bracket incl.) |
| Bus Type | PCI Express |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Humidity | 5~85% RH |
| Connector(s) | |
| Internal Ports | SATA Power (15 pin) Plug |
| LP4 (4 pin, Molex Large Drive Power) Male | |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Connector Type(s) | PCI Express x4 Male |
The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four, dedicated 5 Gbps USB 3.0 ports to your PCIe x4-enabled PC. This independent port architecture improves USB 3.0 performance by transferring data on four individual channels to your computer, giving you faster file transfers.
When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Dedicating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
For high-power USB devices, this PCIe USB 3.0 card includes an optional SATA or LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0). The USB 3.0 card also supports USB Battery Charging Specification 1.2 (Apple Mode only), letting you charge compatible Apple devices (iPhones and iPads) faster than a standard USB 3.0 port.
The controller card is compliant with USB 3.0 standards while offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the USB 3.0 PCIe card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
