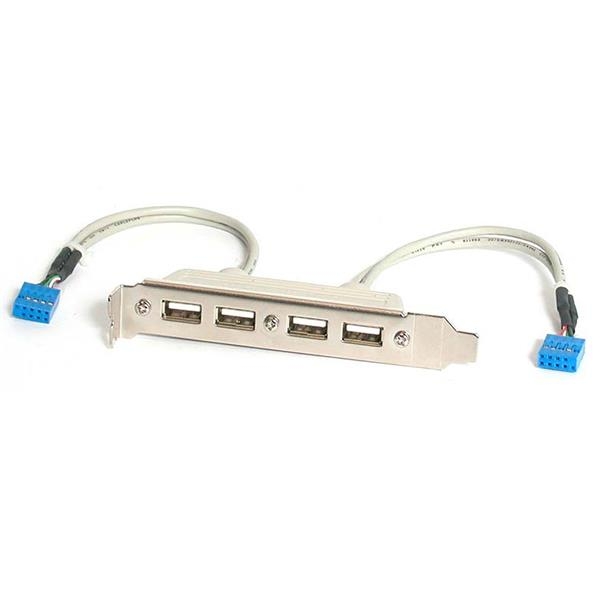

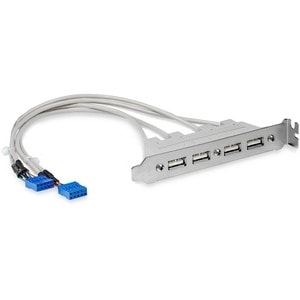

Startech 4 Port Usb A Female Slot Plate Adapter - Usb Panel - 4 Pin Usb Type A (f) Usbplate4
Add four USB 2.0 Ports to the back of your computer. The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard's manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
Brand Name: StarTech.com
Cable Length: 28.58 cm
Cable Type: USB
Connector on First End: 4 x Type A Female USB
Connector on Second End: 2 x IDC Female USB Header
Packaged Quantity: 1
Product Type: Data Transfer Cable
General Information
Brand Name: StarTech.com
Manufacturer Part Number: USBPLATE4
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
Add four USB 2.0 Ports to the back of your computer. The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard's manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
Packaged Quantity: 1
Product Name: 4 Port USB A Female Slot Plate Adapter - USB panel - 4 pin USB Type A (F)
Product Type: Data Transfer Cable
Miscellaneous
Green Compliant: Yes
Technical Information
Cable Length: 28.58 cm
Cable Type: USB
Conductor: Copper
Connector on First End: 4 x 4-pin Type A Female USB 2.0 USB
Connector on Second End: 2 x 5-pin IDC Female USB Header
Device Supported: Motherboard
| What's in the Box | |
| Included in Package | 4 Port USB 2.0 Connector Backplate |
| Physical Characteristics | |
| Product Weight | 68 g [2.4 oz] |
| Cable Length | 286 mm [11.3 in] |
| Performance | |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Environmental | |
| Storage Temperature | -5?C to 80?C (41?F to 176?F) |
| Operating Temperature | -5?C to 40?C (41?F to 104?F) |
| Humidity | 20%~60% |
| Connector(s) | |
| Connector B | USB Type-A (4 pin) USB 2.0 Female |
| Connector A | IDC (10 pin, Motherboard Header) Female |
The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
