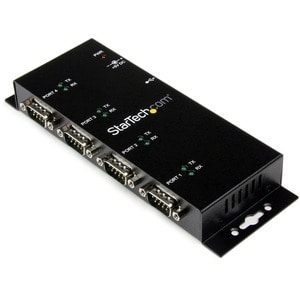

Startech 4 Port Usb To Db9 Rs232 Serial Adapter Hub Industrial Dinrail And Wall Mountable - Usb ICUSB2324I
QUICK OVERVIEW
4 Port USB to DB9 RS232 Serial Adapter Hub Industrial DINRail and Wall
Mountable - USB to RS 232 Serial Adapter 4-Port - USB to Serial Converter
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Multiport Serial Devices & Cables
Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB. The
ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a
single USB port into four RS232 serial ports, enabling you to connect to,
monitor and control your serial devices.Featuring rugged metal construction,
with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this
USB to Serial Hub provides versatile mounting options and a robust solution for
both harsh industrial environments and simple desktop installations.This USB
powered adapter also retains assigned serial COM port values once connected,
allowing the same values to be automatically reassigned to the ports provided by
the adapter.Backed by a StarTech.com 2-year warranty and free lifetime technical
support.
Brand Name: StarTech.com
Form Factor: Wall Mountable
Host Interface: USB
Number of Ports: 1
Number of Ports: 4
Product Type: Serial Hub
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT4232HL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 4 |
| Indicators | |
| LED Indicators | Each, Tx/Rx Activity indicators |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 921.6Kbps |
| MTBF | 282713.5 hours |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 2 |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 450 g [15.9 oz] |
| Product Width | 66.5 mm [2.6 in] |
| Power | |
| Plug Type | M |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | 6 ft USB A to B cable |
| DIN rail kit | |
| Driver CD | |
| Instruction Manual | |
| USB to RS-232 Serial Adapter | |
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
