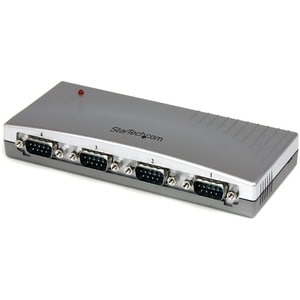

Startech 4 Port Usb To Rs232 Serial Db9 Adapter Hub Icusb2324
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial
devices to your Mac or PC laptop or desktop computer through a single USB port,
as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and
is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern
USB-capable computers and legacy RS232 serial peripherals, this dependable
USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
Add four additional RS-232 serial ports to any computer with a free USB port
Provides serial connectivity to legacy free systems lacking RS-232 serial ports
Supports wakeup and power management modes
Warranty Lifetime
Hardware
Bus Type USB 2.0
Chipset ID FTDI - FT232RL
Industry Standards RS232
USB 1.1
Interface Serial
Port Style External Hub
Ports 4
Performance
FIFO 256 Bytes
Max Baud Rate 921.6 Kbps
Serial Protocol RS-232
Connector(s)
Connector Type(s) 1 - USB A (4 pin) Male
External Ports 4 - DB-9 (9 pin; D-Sub) Male
Software
OS Compatibility Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP
(32/64), 2000, 98SE, XP Embedded, CE (4.2+)
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (Tested up to 10.10)
Linux 2.4.x / 2.6.x
Special Notes / Requirements
System and Cable Requirements One free USB port
Physical Characteristics
Cable Length 6 ft [1.8 m]
Enclosure Type Plastic
Product Height 1 in [26 mm]
Product Length 5.9 in [150 mm]
Product Weight 3.9 oz [110 g]
Product Width 2.6 in [66.5 mm]
Power
Power Consumption 1 ~ 1.5W
Environmental
Humidity 5~95% RH
Operating Temperature 0?C to 55?C (32?F to 131?F)
Storage Temperature -20 to 85?C (-4 to 185?F)
Packaging Information
Shipping (Package) Weight 0.8 lb [0.4 kg]
What's in the Box
Included in Package 1 - 4 Port Serial Hub
1 - USB Cable
1 - Driver CD
1 - Instruction Manual
| Connector(s) | |
| Connector Type(s) | USB Type-A (4 pin) USB 2.0 Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20 to 85?C (-4 to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Industry Standards | RS232 |
| USB 1.1 | |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.8 lb] |
| Performance | |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Enclosure Type | Plastic |
| Product Height | 26 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 110 g [3.9 oz] |
| Product Width | 66.5 mm [2.6 in] |
| Power | |
| Power Consumption (In Watts) | 1 ~ 1.5W |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One free USB port |
| What's in the Box | |
| Included in Package | 4 Port Serial Hub |
| Driver CD | |
| Instruction Manual | |
| USB Cable | |
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
