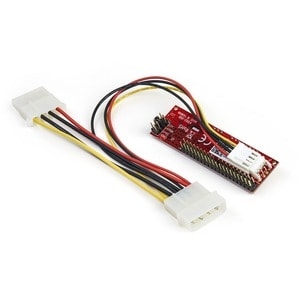

Startech 40-pin Ide Pata To Sata Adapter Converter - Ide To 2.5/ 3.5/ 5.25 Sata Drive Adapter With
QUICK OVERVIEW
40-Pin IDE PATA to SATA Adapter Converter - IDE to 2.5/3.5/5.25 SATA drive
adapter with support for solid state drives (SSD) hard drives (HDD) and optical
drives (ODD)
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Usb Cables & Adapters
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard.
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III
drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective
solution that allows you to add newer SATA drives, and keep your existing
motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap
between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The
IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add
Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free
lifetime technical support.
Brand Name: StarTech.com
Product Type: IDE-to-SATA Adapter
| Connector(s) | |
| Connector Type(s) | IDE (40 Pin, EIDE/PATA) |
| SATA Data & Power Combo (7+15 pin) | |
| SP4 (4 pin, Small Drive Power) | |
| Environmental | |
| Humidity | 15~90% RH |
| Operating Temperature | 5?C to 50?C (40?F to 122?F) |
| Storage Temperature | -25?C to 80?C (-13?F to 176?F) |
| Hardware | |
| Chipset ID | Marvell - 88SA8052 |
| Compatible Drive Types | SATA |
| Drive Size | 2.5in & 3.5in |
| Interface | IDE |
| Number of Drives | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 80 g [2.8 oz] |
| Performance | |
| Maximum Data Transfer Rate | 133MB/sec |
| RAID | No |
| Physical Characteristics | |
| Enclosure Type | Steel and Plastic |
| Product Height | 23 mm [0.9 in] |
| Product Length | 75.5 mm [3 in] |
| Product Weight | 15 g [0.5 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | An IDE controller and ATA cable (not included). |
| What's in the Box | |
| Included in Package | IDE to SATA adapter |
| Instruction Manual | |
| LP4 Molex to SP4 Power Cable | |
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
