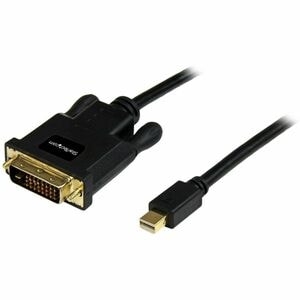

Startech 6 Ft Mini Displayport To Dvi Adapter Converter Cable - 6 Foot Mini Dp To Dvi Video Adapter 190438
QUICK OVERVIEW
6 ft Mini DisplayPort to DVI Adapter Converter Cable - 6 foot Mini DP to DVI
Video Adapter Converter - MDP to DVI Cable for Mac or PC 1920x1200 - Black
by Startech
Category: Cables
Sub Category: A/V Cables & Adapters
Product Type: Audio & Video Cables & Adapters
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot
distance - Black. The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you
directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook™,
etc.) to a DVI monitor or projector, eliminating the expense of having to
upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male
connectors, allowing you to connect your Mini DisplayPort source directly to a
DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to
1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port
(DisplayPort++), meaning that DVI and HDMI signals can also be passed through
the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Cable Length: 1.83 m
Cable Type: Mini DisplayPort/DVI
Colour: Black
Connector on First End: 1 x Mini DisplayPort Male Digital Audio/Video
Connector on Second End: 1 x DVI-D Male Digital Video
Packaged Quantity: 1
Product Type: Video Cable
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-D (25 pin) Male |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Cable Adapters |
| Audio | No |
| Chipset ID | NXP - 3361 |
| Converter Type | Cable Adapters |
| Output Signal | DVI-D (DVI Digital) |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| Maximum Cable Length | 1.8 m [6 ft] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 1830 mm [72 in] |
| Product Weight | 110 g [3.9 oz] |
| Product Width | 40 mm [1.6 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI? signal pass-through |
| What's in the Box | |
| Included in Package | Mini DisplayPort? to DVI Adapter |
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook™, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
