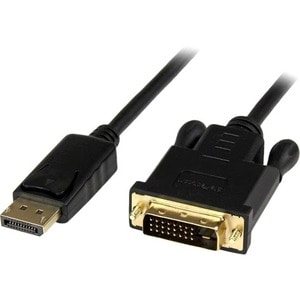

Startech 6ft 1.8m Displayport To Dvi Active Adapter Converter Cable 6 Foot Active Dp To Dvi Mm
QUICK OVERVIEW
6ft 1.8M DisplayPort to DVI Active Adapter Converter Cable 6 foot Active DP
to DVI MM Cable for PC 1.8 meter Active DisplayPort to DVI Adapter Converter
Cable 1920x1200 Black
by Startech
Category: Cables
Sub Category: A/V Cables & Adapters
Product Type: Audio & Video Cables & Adapters
Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable.
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect
your DisplayPort-equipped desktop or laptop directly to a DVI monitor or
projector with no additional adapters or cables required -- a cost-effective
solution for enabling your new DisplayPort computer to work with an older VGA
monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active
DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode
DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can
be used with graphics cards that are not capable of outputting multimode DP++
signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 2560x1600 you
can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM6BS is backed by a 2-year StarTech.com warranty and free lifetime
technical support.
Brand Name: StarTech.com
Cable Length: 1.83 m
Cable Type: DisplayPort/DVI
Colour: Black
Connector on First End: 1 x DisplayPort Male Digital Audio/Video
Connector on Second End: 1 x DVI-D Male Digital Video
Packaged Quantity: 1
Product Type: Video Cable
| Performance | |
| Maximum Digital Resolutions | 1920 x 1200 |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 1.9 m [6.1 ft] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 1850 mm [72.8 in] |
| Product Weight | 113 g [4 oz] |
| Product Width | 40 mm [1.6 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter. |
| This adapter is not compatible for use with the Apple Cinema Display. | |
| What's in the Box | |
| Included in Package | Active DisplayPort to DVI Adapter |
| Performance | |
| Maximum Cable Length | 1.8 m [6 ft] |
| Packaging Information | |
| Shipping (Package) Weight | 123 g [4.3 oz] |
| Hardware | |
| Converter Type | Cable Adapters |
| Chipset ID | Parade - PS171 |
| Audio | No |
| Adapter Style | Cable Adapters |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 40%-85%RH |
| Connector(s) | |
| Connector B | DVI-D (25 pin) Male |
| Connector A | DisplayPort (20 pin) Male Latching |
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 2560x1600 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM6BS is backed by a 2-year StarTech.com warranty and free lifetime technical support.
