Startech 6u 22in Depth Hinged Open Frame Wall Mount Server Rack - Open Frame Rack Cabinet Wallmount
QUICK OVERVIEW

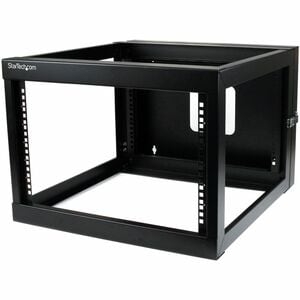

6U 22in Depth Hinged Open Frame Wall Mount Server Rack - Open Frame Rack
Cabinet Wallmount Server Rack
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Wall Mount Racks/Enclosures
Wall-mount your server or networking equipment with a hinged rack design for
easy access and maintenance. The RK619WALLOH 6U 22in Depth Hinged Open Frame
Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or
network equipment and features a hinged rack design that allows the entire frame
to swing open for easy installation and maintenance of your equipment.The 6U
wallmount rack offers a 4 post design for additional support of your equipment,
storing a maximum weight capacity of 49.8 kg (110 lbs). Constructed of
high-quality SPCC cold-rolled steel for strength and durability, the open frame
wallmount server rack allows for maximum airflow, and ships complete with all of
the rack screws and cage nuts required to mount your equipment, saving the
expense of purchasing them separately. Backed by a StarTech.com Lifetime
warranty.
Brand Name: StarTech.com
Colour: Black
Depth: 556.3 mm
Form Factor: Wall Mountable
Height: 408.9 mm
Material: Cold-rolled Steel (CRS)
Product Type: Rack Frame
Rack Height: 6U
Rack Width: 482.60 mm
Weight (Approximate): 13.97 kg
Width: 604.5 mm
| Hardware | |
| Adjustable Mounting Rails | No |
| Cable Management | No |
| Casters | No |
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Construction | Open |
| Front Door Key Lock | No |
| Industry Standards | EIA RS310-D |
| EIA-310-D | |
| Ladder Offset | 19 mm [0.7 in] |
| Ladder Type | L-Shape |
| Mounting Holes | Square |
| Number and Type of Included Cage Nuts | 10-32 |
| Rack Type | 4-Post |
| Tools Included | No |
| U Height | 6U |
| U Markings | No |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack (Assembly Required) | No |
| Shipping (Package) Weight | 16.3 kg [36.1 lb] |
| Performance | |
| Ventilation Capacity | Open Frame |
| Weight Capacity (Stationary) | 49.8 kg [110 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 602 mm [23.7 in] |
| External Height | 408 mm [16.1 in] |
| External Width | 556 mm [21.9 in] |
| Minimum Mounting Depth | 502 mm [19.8 in] |
| Product Height | 408 mm [16.1 in] |
| Product Length | 602 mm [23.7 in] |
| Product Weight | 14.4 kg [31.8 lb] |
| Product Width | 556 mm [21.9 in] |
| Rail Thickness | 2 mm [0.1 in] |
| What's in the Box | |
| Included in Package | #10-32 UNF Cage Nuts |
| #10-32 UNF Panel Screws | |
| Hinged Wall Mount Rack | |
| Instruction Manual | |
The RK619WALLOH 6U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The 6U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 49.8 kg (110 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
