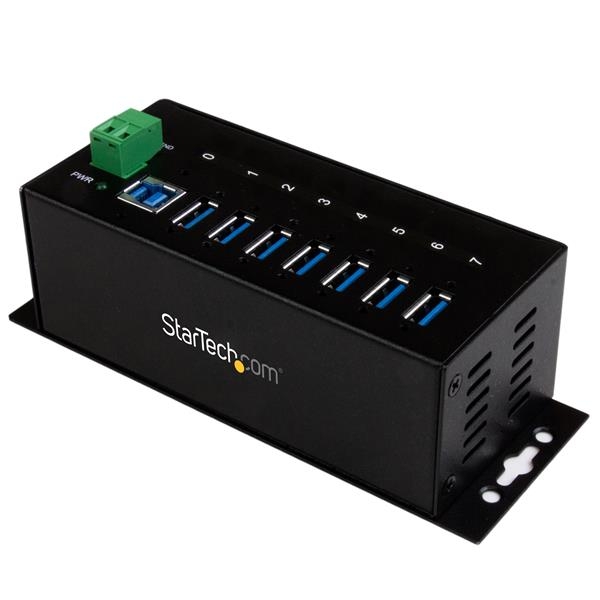

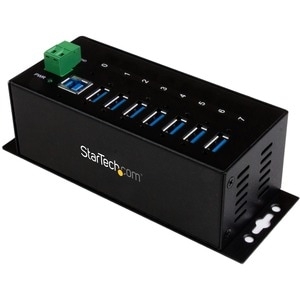

Startech 7 Port Industrial Usb 3.0 Hub - 15kv Esd And 350w Surge Protection - Din Rail/ Surface
QUICK OVERVIEW
Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub. Engineered to meet the challenges of tough industrial environments, this USB 3.0 hub lets you expand your USB capability by adding seven external USB 3.0 ports to your computer.
Now you can increase your productivity every day by gaining powerful and convenient access to your external hard drives, printers, mobile devices and other peripherals.
Reliable performance even in tough industrial environments
Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. The extended operating temperature range (0°C to 70°C) helps to ensure reliable performance even in the most demanding factory and industrial environments.
The rugged hub also offers surge and ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.
Secure and versatile installation on DIN rails or surfaces
This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.
Supports transfer speeds up to 5 Gbps
Compliant with SuperSpeed USB 3.0, this industrial hub supports 5 Gbps bandwidth, and is backward compatible with USB 2.0 and 1.x specifications, for simultaneous support for older USB peripherals or legacy systems that lack USB 3.0 capabilities.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Form Factor: External
Host Interface: USB
Product Type: USB Hub
Total Number of USB Ports: 7
General Information
Brand Name: StarTech.com
Manufacturer Part Number: ST7300USBME
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add seven USB 3.0 ports with this DIN rail or surface-mountable metal hub. Engineered to meet the challenges of tough industrial environments, this USB 3.0 hub lets you expand your USB capability by adding seven external USB 3.0 ports to your computer.
Now you can increase your productivity every day by gaining powerful and convenient access to your external hard drives, printers, mobile devices and other peripherals.
Reliable performance even in tough industrial environments
Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. The extended operating temperature range (0°C to 70°C) helps to ensure reliable performance even in the most demanding factory and industrial environments.
The rugged hub also offers surge and ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.
Secure and versatile installation on DIN rails or surfaces
This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.
Supports transfer speeds up to 5 Gbps
Compliant with SuperSpeed USB 3.0, this industrial hub supports 5 Gbps bandwidth, and is backward compatible with USB 2.0 and 1.x specifications, for simultaneous support for older USB peripherals or legacy systems that lack USB 3.0 capabilities.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity: 1
Product Name: 7 Port Industrial USB 3.0 Hub - ESD and Surge Protection
Product Type: USB Hub
Interfaces/Ports
Number of USB 3.0 Ports: 7
Total Number of USB Ports: 7
Physical Characteristics
Colour: Black
Form Factor: External
Height: 43.2 mm
Length: 121.9 mm
Weight (Approximate): 649.2 g
Width: 55.9 mm
Technical Information
Host Interface: USB
| Connector(s) | |
| Connector Type(s) | Terminal Block (2 Wire) |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-B (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 5%~95% RH (Non-condensing) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Genesys Logic - GL3520 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Interface | USB 3.0 |
| Ports | 7 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Indicators | |
| LED Indicators | Power (Green) |
| Packaging Information | |
| Shipping (Package) Weight | 610 g [21.5 oz] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 126,106 Hours |
| Surge Protection | 15kV ESD protection |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Form Factor | Industrial |
| Product Height | 45 mm [1.8 in] |
| Product Length | 145 mm [5.7 in] |
| Product Weight | 325 g [11.5 oz] |
| Product Width | 54 mm [2.1 in] |
| Power | |
| Input Voltage | 7 ~ 48 DC |
| Power Source | Terminal Block |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| This product is intended for use with terminal block power only ? Standard AC adapter not available | |
| System and Cable Requirements | Host computer with an available USB 3.0 port |
| What's in the Box | |
| Included in Package | 7 Port Industrial USB 3.0 Hub |
| DIN Rail Mounting Kit | |
| Instruction Manual | |
| Terminal Block (2 Wire) | |
| USB 3.0 A - B Cable | |
Engineered to meet the challenges of tough industrial environments, this USB 3.0 hub lets you expand your connectivity options by adding seven external USB 3.0 ports to your computer.
Now you can increase your everyday productivity by gaining powerful and convenient access to your external hard drives, printers, mobile devices and other peripherals.
Reliable performance even in tough industrial environments
Designed for performance and durability, the industrial-grade hub features a rugged, metal housing. Its wide-range 7-48V DC terminal block input gives you the flexibility to power the hub as required, based on your own power input capabilities. Plus, it supports an extended operating temperature range (0?C to 70?C), helping to ensure reliable performance even in the most demanding factory and industrial environments.
The rugged hub also offers ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.
Secure and versatile installation on DIN rails or surfaces
This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is a concern that USB connections may become unplugged. Plus, it also includes optional DIN rail mounts for use with equipment rack installations.
Supports transfer speeds up to 5Gbps
Compliant with SuperSpeed USB 3.0, this industrial hub supports 5Gbps bandwidth. It's also backward compatible with USB 2.0 and 1.x specifications, simultaneously supporting older USB peripherals or legacy systems that lack USB 3.0 capabilities.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
