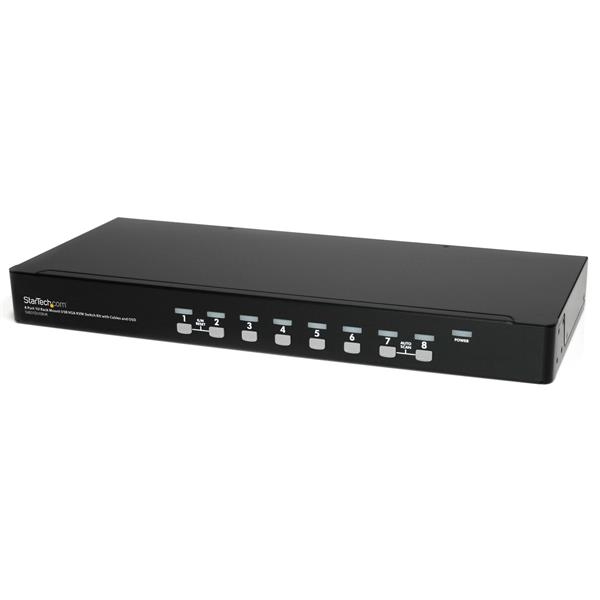

Startech 8 Port 1u Rackmount Usb Kvm Switch Kit With Osd And Cables - Rack Mount Kvm - Vga Kvm
QUICK OVERVIEW
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Brand Name: StarTech.com
Number of Computers Supported: 8
Product Type: KVM Switchbox
USB: Yes
VGA: Yes
General Information
Brand Name: StarTech.com
Manufacturer Part Number: SV831DUSBUK
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Product Name: 8 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables
Product Type: KVM Switchbox
Interfaces/Ports
Number of USB Ports: 2
Number of VGA Ports: 1
USB: Yes
VGA: Yes
Miscellaneous
Green Compliant: Yes
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 2.90 kg
Power Description
Input Voltage: 240 V AC
Technical Information
Daisy Chain Supported: Yes
Number of Computers Supported: 8
Video
Maximum Video Resolution: 1920 x 1440
| Connector(s) | |
| Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | VGA (15 pin, High Density D-Sub) Female |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 5°C to 40?C (41?F to 104?F) |
| Storage Temperature | -20°C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | Yes |
| KVM Ports | 8 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | Yes |
| U Height | 1U |
| Indicators | |
| LED Indicators | Green - PC Online |
| Green - Power | |
| Red - PC Selected | |
| Packaging Information | |
| Shipping (Package) Weight | 5 kg [11 lb] |
| Performance | |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) |
| Maximum Cascaded Computers | 64 |
| Maximum Number of Users | 1 |
| On-Screen Display | Yes |
| Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 180 mm [7.1 in] |
| Product Height | 45 mm [1.8 in] |
| Product Weight | 2180 g [77 oz] |
| Product Width | 435 mm [17.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 110V-240V AC |
| Output Current | 1A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 12 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 6ft 2-in-1 USB VGA KVM cables |
| 8 Port USB KVM Switch | |
| Mounting Brackets | |
| Universal Power Adapter (NA/EU/UK/AU) | |
| User Manual | |
The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
