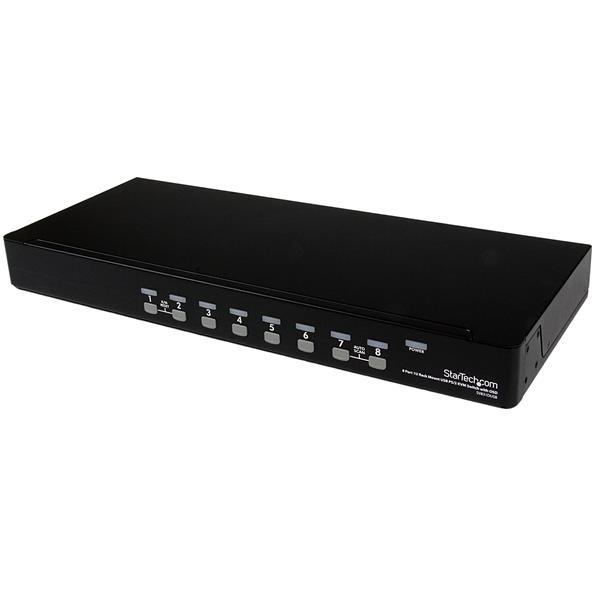

Startech 8 Port 1u Rackmount Usb Ps/ 2 Kvm Switch With Osd Sv831dusb
The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Number of Computers Supported: 8
PS/2 Port: Yes
Product Family: StarView
Product Type: KVM Switchbox
General Information
Brand Name: StarTech.com
Manufacturer Part Number: SV831DUSB
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information:
The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Packaged Quantity: 4
Product Line: StarView
Product Name: StarView USB Console KVM Switch with OSD
Product Type: KVM Switchbox
Interfaces/Ports
PS/2 Port: Yes
Physical Characteristics
Depth: 437.9 mm
Form Factor: Rack-mountable
Height: 45 mm
Rack Height: 1U
Weight (Approximate): 2.90 kg
Width: 180.1 mm
Technical Information
Daisy Chain Supported: Yes
Number of Computers Supported: 8
Video
Maximum Video Resolution: 1920 x 1440
| Environmental | |
| Operating Temperature | 5?C to 40?C (41?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | No |
| Cables Included | No |
| Daisy-Chain | Yes |
| KVM Ports | 8 |
| Number of Monitors Supported | 1 |
| PC Interface | USB and PS/2 |
| PC Video Type | VGA |
| Rack-Mountable | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 3.5 kg [7.6 lb] |
| Performance | |
| DVI Support | No |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1440 @60hz |
| Maximum Cascaded Computers | 64 |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 45 mm [1.8 in] |
| Product Length | 438 mm [17.2 in] |
| Product Weight | 2900 g [102.4 oz] |
| Product Width | 180 mm [7.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.2A |
| Input Voltage | 110V-240V AC |
| Output Current | 0.6A |
| Output Voltage | 9 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 5.4 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 8-port KVM switch |
| foot pads | |
| instruction manual | |
| mounting brackets | |
| PS/2 keyboard and mouse Y cable | |
| universal power adapter (NA/EU/UK) | |
The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.
This high quality USB PS/2 KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
