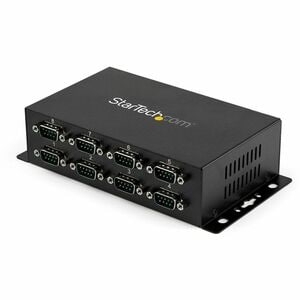

Startech 8 Port Usb To Db9 Rs232 Serial Adapter Hub Industrial Dinrail And Wall Mountable - Usb
QUICK OVERVIEW
8 Port USB to DB9 RS232 Serial Adapter Hub Industrial DINRail and Wall
Mountable - USB to RS 232 Serial Adapter 8-Port - USB to Serial Converter
by Startech
Category: Connectivity Devices
Sub Category: Serial/Parallel & I/O Cards
Product Type: Multiport Serial Devices & Cables
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB. The
ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a
single USB port into eight RS232 serial ports, enabling you to connect to,
monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and
top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides
versatile mounting options and a robust solution for both harsh industrial
environments and simple desktop installations. This USB powered adapter also
retains assigned serial COM port values once connected, allowing the same values
to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Form Factor: Wall Mountable
Host Interface: USB
Number of Ports: 1
Number of Ports: 8
Product Type: Serial Hub
Performance | |
Data Bits | 7, 8 |
FIFO | 4096 byte Transmit and Receive |
Max Baud Rate | 921.6 Kbps |
Maximum Data Transfer Rate | 921.6 Kbps |
MTBF | 146,300 Hours |
Parity | Odd, Even, Mark, Space, None |
Serial Protocol | RS-232 |
Stop Bits | 1, 2 |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 43.2 mm [1.7 in] |
Product Length | 180 mm [7.1 in] |
Product Weight | 544 g [19.2 oz] |
Product Width | 100 mm [3.9 in] |
Power | |
Input Current | 250 mA |
Input Voltage | 5 DC |
Plug Type | M |
Power Source | USB-Powered |
Software | |
OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
What's in the Box | |
Included in Package | 6 ft USB A to B cable |
DIN rail kit | |
Driver CD | |
Instruction Manual | |
USB to RS-232 Serial Adapter | |
Packaging Information | |
Shipping (Package) Weight | 0.9 kg [1.9 lb] |
Indicators | |
LED Indicators | Power |
Hardware | |
Ports | 8 |
Port Style | External Hub |
Interface | Serial |
Chipset ID | FTDI - FT232RL |
Bus Type | USB 2.0 |
Environmental | |
Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
Operating Temperature | 0?C to 55?C (32?F to 131?F) |
Humidity | 5~95% RH |
Connector(s) | |
External Ports | USB B (4 pin) Female |
DB-9 (9 pin, D-Sub) Male |
The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
