Startech 8u Open Frame Wall Mount Equipment Rack - Adjustable Depth Rk812walloa
QUICK OVERVIEW

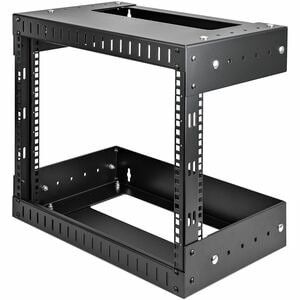

8U Open Frame Wall Mount Equipment Rack - Adjustable Depth
by Startech
Category: Power & Rack Equipment
Sub Category: Racks & Enclosures
Product Type: Rack Enclosure Components
The RK812WALLOA 8U Open Frame Wall Mount Equipment Rack with Adjustable Depth is
a high-quality, sturdy relay rack solution that is easy to assemble and install
into any environment.The open rack features an adjustable depth ranging from
12-20 inches, in order to accommodate larger data, network and
telecommunications devices. The greater than average depth of the rack also
allows for mounting of shelves and other accessories. The wall mounts are
positioned 16in apart (center to center), making it suitable for mounting on
virtually any wall surface, based on North American wall frame stud spacing
standards.This 8U rack can be mounted to the wall in a server room, office, or
above a doorway, expanding your workspace and keeping your equipment easily
accessible.
Brand Name: StarTech.com
Colour: Black
Depth: 335 mm
Form Factor: Wall Mountable
Height: 495 mm
Material: Steel Frame
Product Type: Rack Frame
Rack Height: 8U
Weight (Approximate): 10.82 kg
Width: 534.9 mm
| Hardware | |
| Adjustable Mounting Rails | No |
| Cable Management | No |
| Casters | No |
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Construction | Open |
| Industry Standards | EIA RS310-C |
| EIA-310-D | |
| Ladder Offset | 0 mm [0 in] |
| Ladder Type | G-Shape G-Shape offset: 0.43 in [11 mm] |
| Mounting Holes | Square |
| Number and Type of Included Cage Nuts | M5 |
| Rack Type | 2-Post |
| Tools Included | No |
| U Height | 8U |
| U Markings | No |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack (Assembly Required) | No |
| Shipping (Package) Weight | 12.1 kg [26.8 lb] |
| Performance | |
| Weight Capacity (Stationary) | 61.2 kg [135.3 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 305 mm [12 in] |
| External Height | 455 mm [17.9 in] |
| External Width | 504 mm [19.8 in] |
| Internal Depth | 297 mm [11.7 in] |
| Internal Width | 500 mm [19.7 in] |
| Minimum Mounting Depth | 300 mm [11.8 in] |
| Product Height | 455 mm [17.9 in] |
| Product Length | 305 mm [12 in] |
| Product Weight | 10.8 kg [23.9 lb] |
| Product Width | 504 mm [19.8 in] |
| Rail Thickness | 2 mm [0.1 in] |
| Special Notes / Requirements | |
| Note | Hardware to mount the rack to the wall is not provided |
| What's in the Box | |
| Included in Package | assembly screws |
| installation guide | |
| M5 cage nuts | |
| M5 screws | |
| truss head screws | |
| wall mount rack | |
The RK812WALLOA 8U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The open rack features an adjustable depth ranging from 12-20 inches, in order to accommodate larger data, network and telecommunications devices. The greater than average depth of the rack also allows for mounting of shelves and other accessories. The wall mounts are positioned 16in apart (center to center), making it suitable for mounting on virtually any wall surface, based on North American wall frame stud spacing standards.
This 8U rack can be mounted to the wall in a server room, office, or above a doorway, expanding your workspace and keeping your equipment easily accessible.
Backed by a StarTech.com lifetime warranty.
