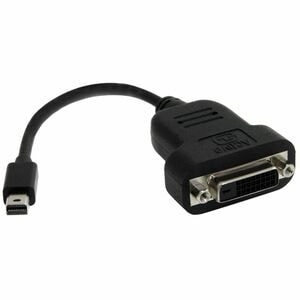

Startech Displayport To Dvi Active Adapter - Dp To Dvi Active Converter Dp2dvis
DisplayPort to DVI Active Adapter - DP to DVI Active Converter
by Startech
Category: Cables
Sub Category: A/V Cables & Adapters
Product Type: Video Cables & Adapters
The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your
DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor,
projector or display, including televisions and Apple Cinema Display HD,
eliminating the expense of having to upgrade to a DisplayPort-capable
monitor.Unlike passive adapters, this DisplayPort-DVI converter offers an active
conversion for use with any DisplayPort output - ideal for graphics cards that
are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple
solution for converting DisplayPort output for compatibility with existing DVI
monitors, televisions or projectors.Backed by a StarTech.com 2-year warranty and
free lifetime technical support.
Brand Name: StarTech.com
Cable Length: 19.99 cm
Cable Type: DVI
Colour: Black
Connector on First End: 1 x DVI-D (Dual-Link) Female Digital Video
Connector on Second End: 1 x DisplayPort Male Digital Video
Product Type: Video Cable
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 20 mm [0.8 in] |
| Product Length | 200 mm [7.9 in] |
| Product Weight | 70 g [2.5 oz] |
| Product Width | 44 mm [1.7 in] |
| What's in the Box | |
| Included in Package | DisplayPort to DVI Adapter |
| Hardware | |
| Output Signal | DVI-D (DVI Digital) |
| Industry Standards | HDCP 1.3 DisplayPort 1.1a DDWG 1.0 |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Converter Type | Format Converter |
| Audio | No |
| Adapter Style | Adapters |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | 80~90% RH |
| Connector(s) | |
| Connector B | DVI-D (25 pin) Female |
| Connector A | DisplayPort (20 pin) Male Latching |
The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.
Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
