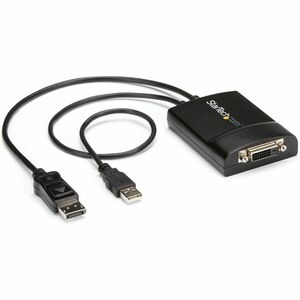

Startech Displayport To Dvi Dual Link Active Adapter Converter - Dp To Dual Link Dvi-d Active Adapter
QUICK OVERVIEW
Connect your DVI Dual Link display to a DisplayPort® video source, for high
resolution applications. The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter
actively converts the output signal from a DisplayPort video source for use with
a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment
costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600), maintaining the
outstanding graphical performance from a DisplayPort- equipped desktop video
card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for
video sources that output either multimode (DP++) or single-mode DisplayPort
signals. This ensures the adapter can be used even with graphics cards that
aren''t capable of outputting multimode DP++ signals, such as ATI® Eyefinity
cards.
Back by StarTech.com 2-year warranty, with free lifetime technical support.
Product Name DisplayPort / DP to DVI Dual Link Active Video Adapter Converter -
2560x1600
Product Type Video/Data Transfer Cable
Cable Type DisplayPort/DVI/USB
Color Black
Packaged Quantity 1
Connector on First End 1 x 20-pin DisplayPort Male Digital Audio/Video
1 x 4-pin Type A Male USB
Connector on Second End 1 x 19-pin DVI-D (Dual-Link) Female Digital Video
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Device Supported Video Device
Notebook
Projector
MacBook
Monitor
Certifications & Standards
CE
FCC
Conductor Copper
Material Plastic - Housing
| Performance | |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 22 mm [0.9 in] |
| Product Length | 549 mm [21.6 in] |
| Product Weight | 110 g [3.9 oz] |
| Product Width | 64 mm [2.5 in] |
| Power | |
| Power Source | USB-Powered |
| Special Notes / Requirements | |
| System and Cable Requirements | 1 x DVI-D Cable (Destination) |
| What's in the Box | |
| Included in Package | DisplayPort to DVI Adapter |
| Performance | |
| Supported Resolutions | 2560 x 1600 @ 60 Hz 1920 x 1080 @ 120 Hz 1920 x 1200 @ 120 Hz |
| Maximum Digital Resolutions | 2560x1600 |
| Packaging Information | |
| Shipping (Package) Weight | 235 g [8.3 oz] |
| Hardware | |
| Output Signal | DVI-D (DVI Digital) |
| Converter Type | Format Converter |
| Audio | No |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Connector(s) | |
| Connector B | DVI-D (25 pin) Female |
| Connector A | USB Type-A (4 pin) USB 2.0 Male |
| DisplayPort (20 pin) Male | |
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 2-year warranty, with free lifetime technical support.
