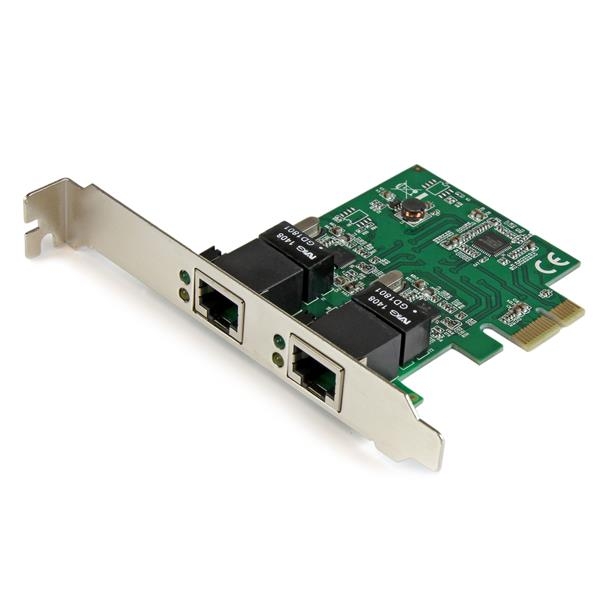

Startech Dual Port Gigabit Pci Express Server Network Adapter Card - Pcie Gigabit Nic - 1 Gbps
QUICK OVERVIEW
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot. The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Brand Name: StarTech.com
Device Supported: Server
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Network Technology: 10/100/1000Base-T
Number of Network (RJ-45) Ports: 2
Product Type: Gigabit Ethernet Card
Total Number of Ports: 2
General Information
Brand Name: StarTech.com
Manufacturer Part Number: ST1000SPEXD4
Manufacturer Website Address: http://www.startech.com
Manufacturer: StarTech.com
Marketing Information: Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot. The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity: 1
Product Name: Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
Product Type: Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express x1
Number of Network (RJ-45) Ports: 2
Total Number of Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Miscellaneous
Device Supported: Server
System Requirements: Windows 10
Network & Communication
Network Technology: 10/100/1000Base-T
Physical Characteristics
Depth: 91.4 mm
Form Factor: Plug-in Card
Height: 119.4 mm
Weight (Approximate): 53.9 g
Width: 17.8 mm
Connector(s) | |
Connector Type(s) | PCI Express x1 Male |
External Ports | RJ-45 Female |
Environmental | |
Humidity | 10~90% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | 0?C to 100?C (32?F to 212?F) |
Hardware | |
Bus Type | PCI Express |
Card Type | Standard Profile (LP bracket incl.) |
Chipset ID | Realtek - RTL8111E ASMedia - ASM1182E |
Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
PCI Express Base Specification 2.0 | |
Interface | RJ45 (Gigabit Ethernet) |
Port Style | Integrated on Card |
Ports | 2 |
Indicators | |
LED Indicators | Green - Link/Activity |
Yellow - Gigabit Mode | |
Packaging Information | |
Shipping (Package) Weight | 133 g [4.7 oz] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
Full Duplex Support | Yes |
Jumbo Frame Support | 9K max. |
Maximum Data Transfer Rate | 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) |
Promiscuous Mode | Yes |
Supported Protocols | IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control |
Physical Characteristics | |
Product Height | 120 mm [4.7 in] |
Product Length | 92.6 mm [3.6 in] |
Product Weight | 51 g [1.8 oz] |
Product Width | 18 mm [0.7 in] |
Software | |
OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS 10.4 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only |
Special Notes / Requirements | |
System and Cable Requirements | Available PCI Express slot |
What's in the Box | |
Included in Package | Driver CD |
Instruction Manual | |
Low Profile Bracket | |
PCIe Network Card |
The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
