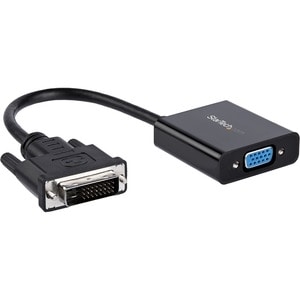

Startech Dvi-d To Vga Active Adapter Converter Cable 1920x1200 - Dvi To Vga Converter Box Dvi2vgae
Connect a DVI-D equipped Laptop or Desktop Computer to your VGA Display, or
Projector. The DVI2VGAE active DVI-D to VGA adapter lets you connect a digital
DVI output from your desktop or laptop computer onto a VGA monitor or projector,
saving the cost of upgrading to a DVI-D compatible display.
Providing a simple way to output user-generated content such as presentations
and work documents, the DVI-D to VGA converter can also work to increase your
productivity by extending your computer''s desktop onto to a secondary monitor,
doubling available workspace.
This portable adapter works to convert a standard powered DVI bus to VGA,
without an external power source. For low-powered DVI ports, a USB cable is
included that can power the device from any USB power source.
With support for resolutions up to 1920x1200 (WUXGA), this active adapter offers
a comprehensive solution for connecting a High-Definition VGA display to a DVI-D
video source.
The DVI2VGAE DVI-D to VGA Adapter is backed by a StarTech.com 2-year warranty
and free lifetime technical support.
Product Name Connect A DVI-D Equipped Laptop or Desktop Computer to Your VGA
Display, or Projector
Product Type Video Cable
Cable Type DVI/VGA
Color Black
Packaged Quantity 1
Connector on First End 1 x 19-pin DVI-D Male Digital Video
Connector on Second End 1 x 15-pin HD-15 Female VGA
1 x 5-pin Type B Female Micro USB
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Features Active
Device Supported Video Device
Notebook
Monitor
Projector
Certifications & Standards
CE
FCC
Conductor Copper
| Performance | |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 190 mm [7.5 in] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 248 mm [9.8 in] |
| Product Weight | 75 g [2.6 oz] |
| Product Width | 45 mm [1.8 in] |
| Power | |
| Power Consumption (In Watts) | 1.3 |
| What's in the Box | |
| Included in Package | 24 in. [610 mm] USB type A to Micro USB type B Cable |
| DVI-D to VGA Adapter Converter | |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 |
| Maximum Analog Resolutions | 1920x1200 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Hardware | |
| Converter Type | Format Converter |
| Audio | No |
| Active or Passive Adapter | Active |
| Environmental | |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 40%-85%RH |
| Connector(s) | |
| Connector Type(s) | USB Micro-B (5 pin) Female |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Connector A | USB Micro-B (5 pin) Female |
| DVI-D (25 pin) Male Input | |
The DVI2VGAE active DVI-D to VGA adapter lets you connect a digital DVI output from your desktop or laptop computer onto a VGA monitor or projector, saving the cost of upgrading to a DVI-D compatible display.
Providing a simple way to output user-generated content such as presentations and work documents, the DVI-D to VGA converter can also work to increase your productivity by extending your computer's desktop onto to a secondary monitor, doubling available workspace.
This portable adapter works to convert a standard powered DVI bus to VGA, without an external power source. For low-powered DVI ports, a USB cable is included that can power the device from any USB power source.
With support for resolutions up to 1920x1200 (WUXGA), this active adapter offers a comprehensive solution for connecting a High-Definition VGA display to a DVI-D video source.
The DVI2VGAE DVI-D to VGA Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
