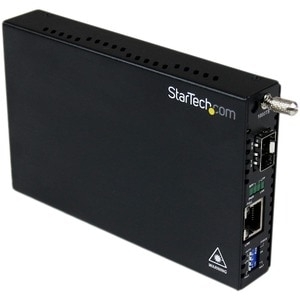

Startech Gigabit Ethernet Fiber Media Converter With Open Sfp Slot - Fiber To Ethernet Converter
QUICK OVERVIEW
Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Fiber to Ethernet
Converter - Ethernet Media Converter - Fiber Optic Media Converter - Fiber Optic
to Ethernet Converter
by Startech
Category: Networking
Sub Category: Transceivers & Converters
Product Type: Media Converters & Components
The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit
Ethernet connection over fiber, using the Gigabit SFP of your choice.A versatile
solution for connecting an Ethernet (1000Base-T) network to remote network
segments over a fiber backbone, the media converter features an open SFP slot
that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber
connection mode (single / multi-mode) and distance requirements (see our full
line of Gigabit transceivers for compatible solutions).The fiber to Ethernet
converter has a durable all-steel chassis and offers simple plug-and-play
installation, while support for full-duplex operation and Jumbo Frame support
provides efficient network operation.For added versatility, this Gigabit media
converter supports standalone operation, or installation into the 20 Slot, 2U
Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted
media converters are required, this Gigabit media converter can be purchased as
a Card Module only (ET91000SFP2C).Backed by a StarTech.com 2-year warranty and
free lifetime technical support.
Brand Name: StarTech.com
DVI: No
Ethernet Technology: Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Desktop
Media Type Supported: Twisted Pair
Network (RJ-45): Yes
Network Technology: 10/100/1000Base-T
Number of Network (RJ-45) Ports: 1
Number of Total Expansion Slots: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 1
USB: No
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 65, 000 Hours |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 23 mm [0.9 in] |
| Product Length | 154 mm [6.1 in] |
| Product Weight | 396 g [14 oz] |
| Product Width | 88 mm [3.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 8 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Hardware | |
| WDM | No |
| PoE | No |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| IEEE 802.3u 100BASE-LX | |
| IEEE 802.3ab 1000BASE-T | |
| Chipset ID | Marvell - 88E1111 |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 10~90% RH (Non-Condensing) |
| Connector(s) | |
| Local Unit Connectors | SFP Slot Female |
| RJ-45 Female | |
The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of Gigabit transceivers for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
