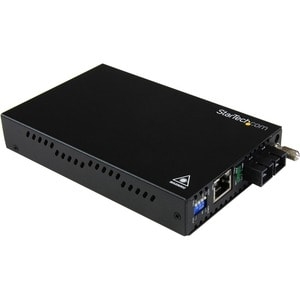

Startech Gigabit Ethernet Multi Mode Fiber Media Converter Sc 550m - 1000 Mbps Et91000sc2
Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
by Startech
Category: Networking
Sub Category: Transceivers & Converters
Product Type: Media Converters & Components
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over
Multi Mode SC fiber. The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media
Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode
fiber, at distances up to 550m (1804 ft). A cost-effective solution for
connecting a Gigabit Ethernet (1000Base-T) network to remote network segments
over a (1000Base-LX/SX) fiber backbone, the GbE to MM fiber converter supports
full Gigabit speeds for ideal network performance and scalability. Designed to
offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC
Fiber converter features an all-steel chassis, and a simple plug-and-play
installation with minimal configuration required. For added versatility, the
fiber media converter supports standalone operation, or installation into the 20
Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty
and free lifetime technical support.
Brand Name: StarTech.com
DVI: No
Fiber Mode Supported: Multi-mode
Form Factor: Desktop
Form Factor: Rack-mountable
Maximum Distance Supported: 550 m
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Network (RJ-45): Yes
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-SX/LX
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Product Type: Transceiver/Media Converter
Total Number of Ports: 2
USB: No
| Performance | |
| Maximum Data Transfer Rate | 2000 Mbps (full duplex mode) |
| MTBF | 65,000 Hours |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 562 g [19.8 oz] |
| Product Width | 90 mm [3.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36A |
| Input Voltage | 115V-230V AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 4 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Performance | |
| Max Transfer Distance | 550 m (1804 ft) |
| Fiber Type | Multi Mode |
| Fiber Operating Mode | Half/Full-Duplex |
| Auto MDIX | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [1.9 lb] |
| Hardware | |
| WDM | No |
| PoE | No |
| Environmental | |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Humidity | 10~90% RH |
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Fiber Optic SC Duplex Female | |
The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
