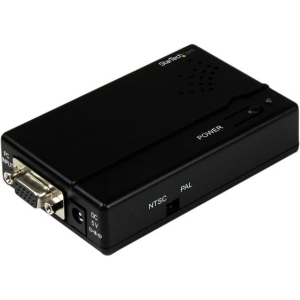

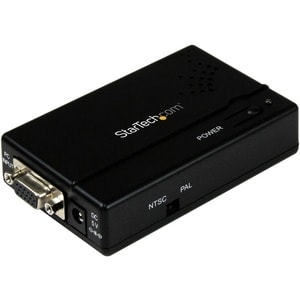

Startech High Resolution Vga To Composite (rca) Or S-video Converter - Pc To Tv Video Adapter -
QUICK OVERVIEW
Connect a PC with VGA output to a composite or S-Video TV.This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | VGA2VID |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | Connect a PC with VGA output to a composite or S-Video TV. This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display. The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration. |
| Product Model: | VGA2VID |
| Product Name: | High Resolution VGA to Composite or S-Video Signal Converter |
| Product Type: | Signal Converter |
| Interfaces/Ports | |
|---|---|
| Host Interface: | VGA |
| VGA: | Yes |
| Physical Characteristics | |
|---|---|
| Form Factor: | External |
| Technical Information | |
|---|---|
| Functions: | Signal Conversion |
| Video Conversion | |
| Maximum Resolution: | 1600 x 1200 |
| Platform Supported: | PC |
| Video Formats: | S-Video |
| Physical Characteristics | |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 100 g [3.5 oz] |
| Product Width | 64 mm [2.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2.6 A |
| Input Voltage | 5 |
| Plug Type | M |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Universal Power Adapter (US/UK/EU/AUS) |
| User Manual | |
| VGA to Composite/S-Video Converter | |
| Physical Characteristics | |
| Product Height | 18.5 mm [0.7 in] |
| Color | Black |
| Performance | |
| Supported Resolutions | PC Input - Up to 1600x1200 @ 60HzOutput - 640x480 |
| MTBF | 10,000 Hours |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.8 lb] |
| Hardware | |
| Converter Type | Format Converter |
| Audio | No |
| Active or Passive Adapter | Active |
| Environmental | |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Connector(s) | |
| Connector B | S-Video (4 pin, Mini-DIN) Female Output |
| Composite Video (1 x RCA) Female Output | |
| Connector A | VGA (15 pin, High Density D-Sub) Female Input |
This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.
The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.
