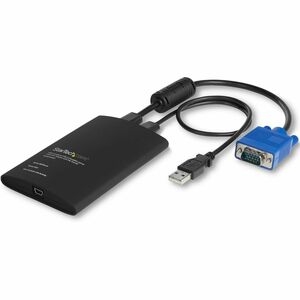

Startech Kvm Console To Laptop Usb 2.0 Portable Crash Cart Adapter With File Transfer - Portable
QUICK OVERVIEW
Turn any laptop into a portable console for rack servers, PCs, ATMs, kiosks
and more. The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your
laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now
with local file transfer and video capture built into the software. Simply
connect the crash cart adapter to your laptop using the included USB cable, then
connect the integrated USB and VGA cables to your server for instant, BIOS-level
control.
Connect Quickly
Get connected in seconds. The crash cart adapter offers integrated VGA and USB
cables for the server-side connections and includes the USB cable to connect to
your laptop.
Troubleshoot your devices faster with a flexible software interface that lets
you transfer files from your laptop to the server, capture videos for records or
instructional purposes, take screenshots and scale the display window to full
screen mode or smaller, with no scroll bars - ever.
Connect Universally
With no server-side software installation required, the USB crash cart adapter
can connect to any PC or device that has a VGA and USB port, to provide
BIOS-level control.
Powered from the server-side USB connection, the laptop crash cart adapter
doesn't require an AC outlet and saves your laptop / netbook battery power.
Connect Portably
With portability for the mobile administrator or repair technician in mind, this
pocket-sized adapter features a rugged design that easily fits inside your
laptop bag and requires no additional accessories to connect.
Eliminating the need to lug around a large, awkward traditional crash cart to
troubleshoot and service your systems, this portable crash cart lets you connect
to a headless device with only a laptop.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name KVM Console to Laptop USB Portable Crash Cart with File Transfer &
Video Capture
Product Type KVM Console
USB Yes
VGA Yes
Number of Computers Supported 1
Number of Local Users Supported 1
Connectivity Technology Wired
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Maximum Video Resolution 1920 x 1200
Graphic Mode WUXGA
Number of USB Ports 1
Form Factor Portable
Packaged Quantity 1
Platform Supported PC
Linux
Mac
Receiver Height 0.60"
Receiver Width 2.90"
Receiver Depth 4.50"
Receiver Weight (Approximate) 6 oz
Color Black
Certifications & Standards
CE
FCC
| Connector(s) | |
| Console Interface(s) | USB Mini-B (5 pin) Female Input |
| Host Connectors | USB Type-A (4 pin) USB 2.0 Male |
| VGA (15 pin, High Density D-Sub) Male | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 1 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Host/Server Keyboard/Mouse USB Link |
| Host/Server Video (VGA) Link | |
| User Console/USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 363 g [12.8 oz] |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 909000 |
| On-Screen Display | No |
| Physical Characteristics | |
| Cable Length | 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable |
| 416 mm [16.4 in] | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Depth | 115 mm [4.5 in] |
| Product Height | 15 mm [0.6 in] |
| Product Weight | 170 g [6 oz] |
| Product Width | 74 mm [2.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.9 to 10.13 Linux 2.6 to 4.11 LTS versions only |
| Special Notes / Requirements | |
| Note | If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration |
| What's in the Box | |
| Included in Package | USB A to Mini-B Cable |
| USB Crash Cart Adpater | |
| USB Software Key | |
The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.
Connect Quickly
Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.
Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.
Connect Universally
With no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.
Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.
Connect Portably
With portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.
Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
