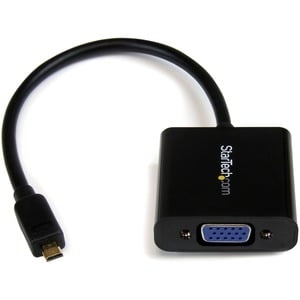

Startech Micro Hdmi To Vga Adapter Converter For Smartphones/ Ultrabook/ Tablet - 1920x1080 - M/
QUICK OVERVIEW
Connect a Micro HDMI® equipped Smartphone or Tablet PC to your VGA Display,
or Projector. The MCHD2VGAE2 HDMI® Micro to VGA adapter/converter actively
converts an HDMI® Micro video signal from your smartphone, Ultrabook, or tablet
PC onto a VGA projector, or display. The Micro HDMI to VGA adapter is intended
for displaying user generated content such as presentations, documents, and work
sheets onto a VGA projector or monitor.
The HDMI Micro/VGA adapter supports video resolutions up to full 1080p, making
it a convenient option for high-definition applications, and features a compact
design with no external power source, which ensures a portable solution that''s
easy to carry as an accessory.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name Micro HDMI to VGA Adapter Converter for
Smartphones/Ultrabook/Tablet
Product Type Video Cable
Cable Type HDMI/VGA
Color Black
Packaged Quantity 1
Connector on First End 1 x 19-pin HDMI (Micro Type D) Male Digital Audio/Video
Connector on Second End 1 x 15-pin HD-15 Female VGA
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Device Supported Video Device
Ultrabook
Notebook
Projector
Monitor
Tablet PC
Certifications & Standards
CE
FCC
Conductor Copper
Material Plastic - Housing
| Connector(s) | |
| Connector A | Micro HDMI (19 pin) Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Environmental | |
| Humidity | 40% to 85% RH Non-Condensing |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | No |
| Converter Type | Format Converter |
| Industry Standards | High Speed HDMI? |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 33 g [1.2 oz] |
| Performance | |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | 1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 255 mm [10 in] |
| Product Weight | 33 g [1.2 oz] |
| Product Width | 45 mm [1.8 in] |
| What's in the Box | |
| Included in Package | Micro HDMI? to VGA Converter Adapter |
The MCHD2VGAE2 HDMI® Micro to VGA adapter/converter actively converts an HDMI® Micro video signal from your smartphone, Ultrabook, or tablet PC onto a VGA projector, or display. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.
The HDMI Micro/VGA adapter supports video resolutions up to full 1080p, making it a convenient option for high-definition applications, and features a compact design with no external power source, which ensures a portable solution that's easy to carry as an accessory.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
