Startech Mini Displayport 194939

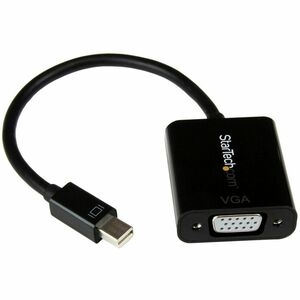

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your
Mini DisplayPort video source (Laptop, Macbook®, Ultrabook etc.) to a VGA
monitor or projector, saving the expense of upgrading to a Mini DisplayPort
compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter
ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to
1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 2-year StarTech.com warranty and free lifetime
technical support.
The StarTech.com Advantage
Save upgrade costs by connecting your Mini DisplayPort computer to a VGA monitor
or Projector
Maximum portability, with small foot print, and no external power adapter
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio No
Chipset ID Analogix ANX9833
Converter Type Active
Performance
Maximum Analog Resolutions 1920x1200 / 1080p (output)
Maximum Digital Resolutions 1920x1200 / 1080p (input)
Wide Screen Supported Yes
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - VGA (15 pin; High Density D-Sub) Female
Physical Characteristics
Cable Length 7.1 in [180 mm]
Color Black
Product Height 0.3 in [8 mm]
Product Length 8.7 in [220 mm]
Product Weight 0.9 oz [25 g]
Product Width 1.4 in [35 mm]
Environmental
Humidity 10%-85%RH
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -10?C to 80?C (14?F to 176?F)
Packaging Information
Shipping (Package) Weight 0.1 lb [0 kg]
What's in the Box
Included in Package 1 - Mini DisplayPort 1.2 to VGA Adapter
| Performance | |
| Maximum Digital Resolutions | 1920x1200 / 1080p (input) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 180 mm [7.1 in] |
| Color | Black |
| Product Height | 8 mm [0.3 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 25 g [0.9 oz] |
| Product Width | 35 mm [1.4 in] |
| What's in the Box | |
| Included in Package | Mini DisplayPort 1.2 to VGA Adapter |
| Performance | |
| Maximum Analog Resolutions | 1920x1200 / 1080p (output) |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Hardware | |
| Converter Type | Format Converter |
| Chipset ID | Analogix - ANX9833 |
| Audio | No |
| Adapter Style | Adapters |
| Active or Passive Adapter | Active |
| Environmental | |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Humidity | 10%-85%RH |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Female |
| Connector A | Mini-DisplayPort (20 pin) Male |
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Laptop, Macbook®, Ultrabook etc.) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display. The mDP adapter is the perfect accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
