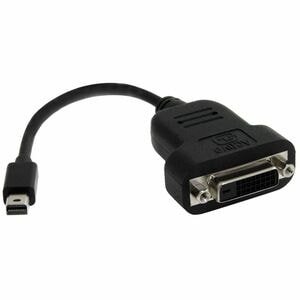

Startech Mini Displayport To Dvi Active Adapter - 1920x1200 - Mini Dp To Dvi Active Adapter Converter
QUICK OVERVIEW
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you
connect your Mini-DisplayPort video source to a DVI-D display, including
televisions and Apple Cinema Display HD, eliminating the expense of having to
upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an
active conversion for use with any Mini DisplayPort output - ideal for graphics
cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI
Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple
solution for adapting PC or Mac Mini-DisplayPort output for DVI monitors,
televisions or projectors.
Compatible with Intel Thunderbolt, when connected directly to a supporting
DisplayPort over Thunderbolt I/O port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name Mini Displayport DVI Single Link Active Converter
Product Type Video Cable
Connector on First End 1 x Mini DisplayPort Male Digital Audio/Video
Color Black
Connector on Second End 1 x 25-pin DVI-D (Single-Link) Female Digital Video
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Product Model MDP2DVIS
Device Supported Monitor
Audio/Video Device
TV
Certifications & Standards
CE
FCC
Conductor Copper
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-D (25 pin) Female |
| Environmental | |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | 0?C to 70?C (32?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Adapter Style | Adapters |
| Audio | No |
| Converter Type | Format Converter |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Industry Standards | HDCP 1.3 DisplayPort 1.1 DDWG 1.0 |
| Output Signal | DVI-D (DVI Digital) |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 20 mm [0.8 in] |
| Product Length | 200 mm [7.9 in] |
| Product Weight | 70 g [2.5 oz] |
| Product Width | 44 mm [1.7 in] |
| What's in the Box | |
| Included in Package | Mini-DisplayPort to DVI Adapter |
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you connect your Mini-DisplayPort video source to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
