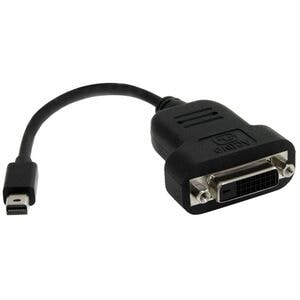

Startech Mini Displayport To Dvi Adapter - Black Mini Dp To Dvi Video Converter - 1920x1200 - Mini-displayport
QUICK OVERVIEW
Connect a DVI Display to a Mini DisplayPort Video Source. The MDP2DVI3 Mini
DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source
(desktop PC, laptop, etc.) to a DVI monitor, projector, or display, eliminating
the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt™ I/O port, the adapter supports display or
projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP
standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning
that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name Mini DisplayPort DVI Video Adapter Converter - Blac Mini DP to DVI
- 1920x1200
Product Type Video Cable
Cable Type DisplayPort/DVI
Color Black
Packaged Quantity 1
Connector on First End 1 x 20-pin Mini DisplayPort Male Digital Audio/Video
Connector on Second End 1 x 29-pin DVI-I Female Video
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Device Supported Video Device
Monitor
Projector
Notebook
Certifications & Standards
FCC
CE
Conductor Copper
| Physical Characteristics | |
| Product Width | 40 mm [1.6 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI? signal pass-through |
| What's in the Box | |
| Included in Package | Mini DisplayPort? to DVI Adapter |
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-I (29 pin) Female |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | 0?C to 70?C (32?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Adapters |
| Audio | No |
| Converter Type | Format Converter |
| Output Signal | DVI-D (DVI Digital) |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.1 lb] |
| Performance | |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 170 mm [6.7 in] |
| Product Weight | 34.8 g [1.2 oz] |
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (desktop PC, laptop, etc.) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
