Startech Mini Displayport 194937
QUICK OVERVIEW

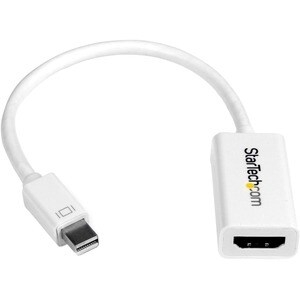

The MDP2HD4KSW Mini DisplayPort to HDMI enables you to connect a mDP-equipped
computer, such as the MacBook® Pro and MacBook® Air, to an HDMI display.This
adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a
result can support video resolutions up to Ultra HD (4K) as well as the
accompanying digital audio up to 7.1 channel surround sound.
With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert
Mini DisplayPort to HDMI while maintaining an astonishing picture quality four
times the resolution of high-definition 1080p. The adapter is also backward
compatible with previous DisplayPort revisions 1.0/1.1 with support for
resolutions up to 1080p.
For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for
plug-and-play installation without any additional software or drivers.Plus, with
a small footprint and lightweight design, the adapter.
To ensure compatibility with any Mini DisplayPort output the mDP adapter offers
an active conversion. Active video conversion is required to maintain 4K
resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is
also ideal for outputting 1080p resolutions by ensuring compatibility with
graphics cards that are not capable of outputting multi-mode DP++ signals (e.g.
ATI Eyefinity).
To support your Mac® the HDMI converter is compatible with Intel® Thunderbolt™
devices that output a DisplayPort video signal.
With a sleek uniform white design the MDP2HD4KSW looks great next to your Mac®,
and is backed by a 2-year StarTech.com warranty, and lifetime technical support.
The StarTech.com Advantage
Prepare for the next generation of displays, with support for Ultra HD 4K video
Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
Easy to carry as a laptop accessory, with a compact design and no external power
adapter needed
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio Yes
Converter Type Active
Industry Standards DPCP (DisplayPort Content Protection)
HDCP (High Definition Content Protection)
DisplayPort 1.2
HDMI 1.4
Ports 1
Performance
Audio Specifications 7.1 Surround Sound
Maximum Digital Resolutions 4K x 2K @ 30 Hz
Supported Resolutions 4k x 2K (Ultra HD)
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported Yes
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - HDMI (19 pin) Female
Physical Characteristics
Cable Length 5.9 in [150 mm]
Product Weight 0.6 oz [17 g]
Environmental
Humidity 10%-85%
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -10?C to 80?C (14?F to 176?F)
Packaging Information
Shipping (Package) Weight 0.8 oz [22 g]
What's in the Box
Included in Package 1 - Mini-DisplayPort to HDMI Active Adapter
Performance | |
Audio Specifications | 7.1 Surround Sound |
Maximum Digital Resolutions | 4K x 2K @ 30 Hz |
Supported Resolutions | 4k x 2K (Ultra HD) 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
Wide Screen Supported | Yes |
Physical Characteristics | |
Cable Length | 150 mm [5.9 in] |
Color | White |
Product Weight | 17 g [0.6 oz] |
What's in the Box | |
Included in Package | Mini-DisplayPort to HDMI Active Adapter |
Packaging Information | |
Shipping (Package) Weight | 22 g [0.8 oz] |
Hardware | |
Ports | 1 |
Industry Standards | DPCP (DisplayPort Content Protection) HDCP (High Definition Content Protection) DisplayPort 1.2 HDMI 1.4 |
Converter Type | Format Converter |
Audio | Yes |
Adapter Style | Adapters |
Active or Passive Adapter | Active |
Environmental | |
Storage Temperature | -10?C to 80?C (14?F to 176?F) |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Humidity | 10%-85% |
Connector(s) | |
Connector B | HDMI (19 pin) Female |
Connector A | Mini-DisplayPort (20 pin) Male |
The MDP2HD4KSW Mini DisplayPort to HDMI adapter enables you to connect a mDP-equipped computer, such as the MacBook® Pro and MacBook® Air, to an HDMI display. This adapter is compatible with Mini DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.
With support for Ultra HD (4K) the mDP to HDMI adapter ensures you can convert Mini DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.
For a hassle-free setup the Mini DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any Mini DisplayPort output the mDP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
To support your Mac® the HDMI converter is compatible with Intel® Thunderbolt™ devices that output a DisplayPort video signal.
With a sleek uniform white design the MDP2HD4KSW looks great next to your Mac®, and is backed by a 2-year StarTech.com warranty, and lifetime technical support.
