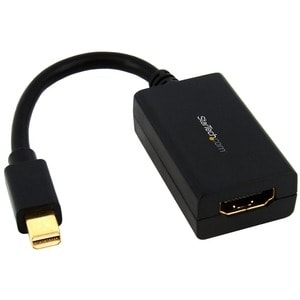

Startech Mini Displayport To Hdmi Video Adapter Converter Mdp2hdmi
The StarTech.com MDP2HDMI Mini DisplayPort® HDMI® Adapter Cable offers a
cost-effective HDMI/Mini DisplayPort link, letting you connect an HDMI display
to a device with a Mini DisplayPort output while saving the expense of upgrading
the monitor for compatibility.
MDP2HDMI is a passive adapter cable that requires a DP++ port (DisplayPort++),
meaning that DVI and HDMI signals can also be passed through the port.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source.
Please review the video source manual to confirm support.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Simple to use, small form factor converter makes Mini DisplayPort® backwards
compatible with your existing HDMI® enabled display or projector
No installation software or drivers required providing a simple plug and play
solution
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio Yes
Converter Type Passive
Performance
Audio Specifications 5.1 Surround Sound
Maximum Digital Resolutions 1920x1200 / 1080p
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - HDMI (19 pin) Female
Special Notes / Requirements
System and Cable Requirements DP++ port (DisplayPort ++) required on video card
or video source (DVI and HDMI pass-through must be supported)
Physical Characteristics
Color Black
Product Height 0.6 in [15 mm]
Product Length 9.4 in [240 mm]
Product Weight 2.1 oz [60 g]
Product Width 1.6 in [40 mm]
Packaging Information
Shipping (Package) Weight 2.8 oz [80 g]
What's in the Box
Included in Package 1 - Mini-DisplayPort to HDMI converter
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | HDMI (19 pin) Female |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Adapters |
| Audio | Yes |
| Converter Type | Format Converter |
| Packaging Information | |
| Shipping (Package) Weight | 80 g [2.8 oz] |
| Performance | |
| Audio Specifications | 5.1 Surround Sound |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Physical Characteristics | |
| Cable Length | 130 mm [5.1 in] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 76.2 mm [3 in] |
| Product Weight | 60 g [2.1 oz] |
| Product Width | 40 mm [1.6 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) |
| What's in the Box | |
| Included in Package | Mini-DisplayPort to HDMI converter |
The StarTech.com MDP2HDMI Mini DisplayPort® HDMI® Adapter Cable offers a cost-effective HDMI/Mini DisplayPort link, letting you connect an HDMI display to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. The mDP adapter is the perfect accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.
MDP2HDMI is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
