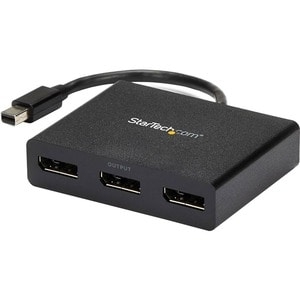

The StarTech.com mDP to DP MST Hub lets you connect three independent DisplayPort monitors to your Mini DisplayPort 1.2 device. The MST hub is VESA and DisplayPort certified to support Windows mDP 1.2 enabled computer systems.

This MST hub has a newly engineered chipset that has been specifically designed to resolve compatibility issues with the Microsoft Surface Pro 3. The new chipset has been rigorously tested by StarTech.com for guaranteed capability with your Microsoft Surface Pro 3, adding up to three displays to your workstation.

Surface Pro 3 compatible

The surface Pro 3 only supports the use of three displays in total. If more than two additional monitors are attached the built-in screen will be disabled.

Extend Your Display ? Increase Productivity with multiple screens
Computer manufacturers today are making your devices smaller and more portable, with fewer video out options, and small integrated screens. The MSTMDP123DP solves both of these problems by letting you connect three independent displays to your Mini DisplayPort (1.2) output.

You can extend your desktop onto additional monitors and stream independent content to each individual display to vastly increase your productivity by giving you the freedom to multitask. Mirror the same image onto multiple displays, for remote viewing applications. Or create a Single Large Surface (SLS), such as a video wall for an immersive gaming atmosphere, or an impressive digital signage application. You can also use two MSTMDP123DP with your AMD Radeon graphics card, enabling you to add up to 6 independent displays.

Increase Productivity with multiple screens

Extend Your Compatibility ? Works with HDMI, VGA & DVI Adapters
With the MSTMDP123DP you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector, making harmonization with your existing video equipment easy.

Extend Your Compatibility

Extend Your Performance ? Achieve unprecedented external video quality
MST technology uses your existing video card to minimize the use of system resources, ensuring the highest performing external video solution possible. MST offers 10.2 Gbps of bandwidth to share across multiple displays to achieve Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Extend Your Performance

Note: When using a DisplayPort 1.1 video card the MSTMDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTMDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Warranty 2 Years
Hardware
Audio Yes
Converter Type MST Hub
Output Signal DisplayPort
Ports 3
Performance
Maximum Digital Resolutions Up to 4K
Wide Screen Supported Yes
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 3 - DisplayPort (20 pin) Latching Female
Special Notes / Requirements
Note DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 7.9 in [200 mm]
Product Weight 3.4 oz [95 g]
Product Width 3.1 in [78 mm]
Power
Center Tip Polarity Positive
Input Current 0.5 A
Input Voltage 110 ~ 240 AC
Output Current 3A
Output Voltage 5 DC
Plug Type N
Power Source AC Adapter Included
Environmental
Operating Temperature 0?C to 45?C (32?F to 113?F)
Storage Temperature -20?C to 70?C (-4?F to 158?F)
Packaging Information
Shipping (Package) Weight 1.3 lb [0.6 kg]
What's in the Box
Included in Package 1 - Mini DisplayPort to DisplayPort MST Hub
1 - Universal Power Adapter (NA/EU/UK/AUS)
1 - Instruction Manual
