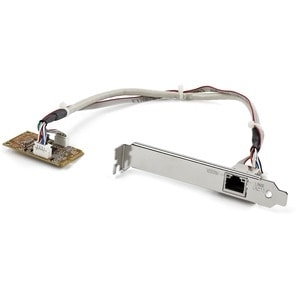

Startech Mini Pci Express Gigabit Ethernet Network Adapter Nic Card St1000smpex
Add a Gigabit RJ45 port through a Mini PCI Express slot. The ST1000SMPEX Mini
PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a
Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system,
such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU
utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames
and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a
wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit
networking capability, or for adding a network connection without taking up a
full-sized PCI Express slots, this high quality Mini PCIe Network Adapter
includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Product Type Gigabit Ethernet Card
Number of Network (RJ-45) Ports 1
Total Number of Ports 1
Form Factor Plug-in Card
Network Technology 10/100/1000Base-T
Host Interface PCI Express
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Height 1.2"
Width 2"
Packaged Quantity 1
Thickness 160 mil
Card Height Low-profile
Network (RJ-45) Yes
Additional Information
Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits
in many Mini-ITX or embedded systems
Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize
system resource usage
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Connector(s) | |
Connector Type(s) | Mini PCI Express x1 (52 pin) Male |
External Ports | RJ-45 Female |
Environmental | |
Humidity | 5% ~ 95% RH |
Operating Temperature | 0?C to 55?C (32?F to 131?F) |
Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
Hardware | |
Bus Type | Mini PCI Express |
Card Type | Embedded |
Chipset ID | Realtek - RTL8111E |
Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Interface | RJ45 (Gigabit Ethernet) |
Ports | 1 |
Indicators | |
LED Indicators | Activity |
Link | |
Packaging Information | |
Package Quantity | 1 |
Shipping (Package) Weight | 150 g [5.3 oz] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
Full Duplex Support | Yes |
MTBF | 482765 Hours |
Promiscuous Mode | Yes |
Physical Characteristics | |
Product Height | 8 mm [0.3 in] |
Product Length | 51 mm [2 in] |
Product Weight | 6 g [0.2 oz] |
Product Width | 30 mm [1.2 in] |
Software | |
OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.4.x and 10.5.x Linux 2.4.x to 4.11.x LTS Versions Only |
Special Notes / Requirements | |
System and Cable Requirements | Available mini PCI Express slot and expansion card slot |
What's in the Box | |
Included in Package | Driver CD |
Instruction Manual | |
Low Profile Bracket | |
Mini PCIe Card | |
RJ45 Daughter Board |
The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
