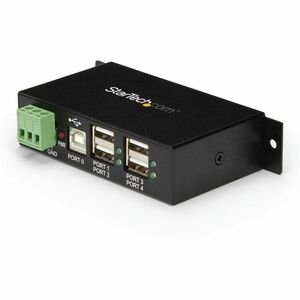

Startech Mountable 4 Port Rugged Industrial Usb Hub St4200usbm

SKU
190299
Brand
MPN
ST4200USBM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$118.00
Buy Now And Earn 118 Reward Points!

This sturdy, industrial grade USB hub can be wall mounted or installed onto a DIN rail for convenient access to its 4 female USB ports, providing a work area, server room, or industrial area with USB 2.0 connectivity. With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 4 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).

Product Name Mountable USB 2.0 Metal Hub - 4 Ports
Product Type USB Hub
Total Number of USB Ports 5
Form Factor External
Host Interface USB
Number of USB 2.0 Ports 5
Height 1"
Width 2.3"
Depth 4.5"
Color Black
Platform Supported PC
Mac
Additional Information
An all metal chassis and surface mounting or DIN rail mounting options makes this versatile for almost any environment
Optional external terminal block DC power connector can ensure full power to all four USB ports simultaneously
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Connector(s)
External PortsTerminal Block (3 Wire)
USB B (4 pin) Female
USB Type-A (4 pin) USB 2.0 Female
Environmental
Operating Temperature0?C to 55?C (32?F to 131?F)
Storage Temperature-20?C to 85?C (-4?F to 185?F)
Hardware
Chipset IDRenesas/NEC - ?PD720114
Industry StandardsUSB 2.0
InterfaceUSB 2.0
Ports4
Indicators
LED IndicatorsPower
Packaging Information
Shipping (Package) Weight0.4 kg [0.9 lb]
Performance
Maximum Data Transfer Rate480 Mbps
MTBF193,317 Hours
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Product Height26.3 mm [1 in]
Product Length114.5 mm [4.5 in]
Product Weight410 g [14.5 oz]
Product Width57.3 mm [2.3 in]
Power
Input Voltage7 ~ 24 DC
Power SourceTerminal Block
Software
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
System and Cable RequirementsAny computer with a USB 2.0 port
What's in the Box
Included in PackageDIN Mounting Rails
Instruction Manual
USB 2.0 Hub
USB Cable

This sturdy, industrial grade USB hub can be wall mounted or installed onto a DIN rail for convenient access to its 4 female USB ports, providing a work area, server room, or industrial area with USB 2.0 connectivity.

With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 4 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).
