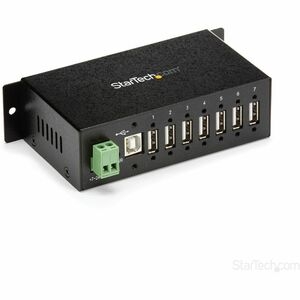

Startech Mountable Rugged Industrial 7 Port Usb Hub St7200usbm
Add 7 USB 2.0 ports to your industrial workspace, with support for DIN rail
or wall-mounted installation. This sturdy, industrial grade USB 2.0 hub can be
wall mounted or installed onto a DIN rail for convenient access to its 7 female
USB 2.0 ports, providing a work area, server room, or industrial environment
with USB 2.0 connectivity.
With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7
port USB hub is backwards compatible with USB 1.1 specifications and can be
powered through the host USB bus, or self powered using a three wire terminal
block connector (7-24V).
Product Name Mountable Industrial 7-Port USB Hub
Product Type USB Hub
Total Number of USB Ports 7
Form Factor External
Host Interface USB
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Number of USB 2.0 Ports 7
Height 1.4"
Width 2.4"
Depth 5.2"
Color Black
Product Model ST7200USBM
Platform Supported PC
Mac
Additional Information
A single USB host connection provides 7 additional USB ports with per port surge
protection
Surface and DIN mounting options and terminal block power input to suit a wide
range of industrial applications
Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Connector(s) | |
| External Ports | Terminal Block (2 Wire) |
| USB B (4 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Chipset ID | Terminus - FE2.1 |
| Industry Standards | USB 2.0 |
| Interface | USB 2.0 |
| Ports | 7 |
| Indicators | |
| LED Indicators | Power |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Performance | |
| Maximum Data Transfer Rate | Up to 480Mbps |
| MTBF | 170,227 Hours |
| Surge Protection | 15KV ESD protection |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 36.3 mm [1.4 in] |
| Product Length | 133 mm [5.2 in] |
| Product Weight | 500 g [17.6 oz] |
| Product Width | 61.5 mm [2.4 in] |
| Power | |
| Input Voltage | 7 ~ 24 DC |
| Power Source | Terminal Block |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | Any computer with a USB 2.0 port |
| What's in the Box | |
| Included in Package | 6 ft [1.8 m] USB-B w/screw lock to USB-A cable |
| DIN rail mounting bracket | |
| Instruction Manual | |
| Screw kit | |
| USB 2.0 Hub | |
This sturdy, industrial grade USB 2.0 hub can be wall mounted or installed onto a DIN rail for convenient access to its 7 female USB 2.0 ports, providing a work area, server room, or industrial environment with USB 2.0 connectivity.
With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).
