Startech Msata To Sata Hdd/ Ssd Adapter Mini Sata To Sata Convertercard - Msata To Sata 2.5/ 3.5
QUICK OVERVIEW
mSATA to SATA HDD/SSD Adapter Mini SATA to SATA ConverterCard - mSATA to SATA
2.5/3.5 Hard Drive Adapter Converter Card - mSATA port to SATA port Adapter
Converter Card
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: File Transfer Cables

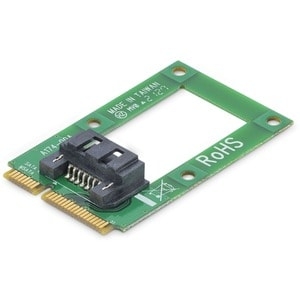

Turn an mSATA host connection into a standard SATA port. The MSAT2SAT3 mSATA to
SATA adapter enables you to connect a standard SATA drive to an available mSATA
port.
The adapter improves system capacity by enabling an mSATA port to host a larger
SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance
the adapter is compliant with SATA I/II/III revisions, allowing for transfer
speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Brand Name: StarTech.com
Product Type: mSATA to SATA HDD/SSD Adapter
| Performance | |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drive |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 8 mm [0.3 in] |
| Product Length | 51 mm [2 in] |
| Product Weight | 4 g [0.1 oz] |
| Product Width | 30 mm [1.2 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Installation Guide |
| mSATA to SATA Adapter | |
| Screw kit | |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0 lb] |
| Hardware | |
| Number of Drives | 1 |
| Interface | SATA |
| Micro SATA | |
| Drive Size | 2.5in & 3.5in |
| Drive Installation | Fixed |
| Compatible Drive Types | SATA |
| Environmental | |
| Storage Temperature | -25?C to 70?C (-13?F to 158?F) |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Humidity | Operating 20% to 80% Non Operating 15% to 90% |
| Connector(s) | |
| Host Connectors | mSATA (52 pin, Mini SATA) Male |
| Drive Connectors | SATA (7 pin, Data) Receptacle |
The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
