Startech Mst Hub - Displayport To 4x Displayport - Multi Stream Transport Hub - Dp 1.2 To Dp -
QUICK OVERVIEW

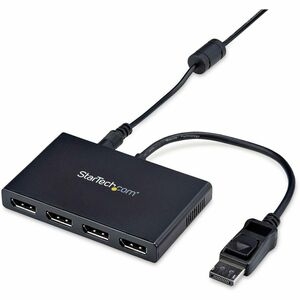

MST Hub - DisplayPort to 4x DisplayPort - Multi Stream Transport Hub - DP 1.2
to DP - Use this multi stream transport hub to connect four DP monitors to a
single DP 1.2 port
by Startech
Category: Connectivity Devices
Sub Category: Switching Devices
Product Type: Video Switchboxes & Splitters (For Compu
Use this multi-stream transport hub to connect four DP monitors to a single DP
1.2 port. This MST hub lets you connect four monitors to your DisplayPort™ (DP)
1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often
means that you're left with fewer video outputs and smaller integrated screens.
This MST hub solves both of these problems by letting you connect four
additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that
enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will
be compatible with virtually any television, monitor or projector. This MST hub
is VESA and DisplayPort certified to support DP 1.2 enabled systems, for
seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and
stream independent content to each display giving you the freedom to multitask
and increase your productivity. You can also mirror the same image onto multiple
displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system
resources while delivering Ultra HD 4K resolutions. This unprecedented
performance makes MST perfect for high-resolution applications such as graphic
design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a
splitter, automatically mirroring your video source across all displays.
Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and
is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can
restrict the available bandwidth with the remaining ports, please see our
guideline below for determining an ideal resolution for your setup. Certain
graphics adapters have limited MST support and will only output to three
displays in total. If more than three monitors are attached the fourth will be
disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Brand Name: StarTech.com
Product Type: Signal Splitter
| Connector(s) | |
| Connector A | DisplayPort (20 pin) Male Input |
| Connector B | DisplayPort (20 pin) Female Output |
| Environmental | |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | Yes |
| Chipset ID | MegaChips - STDP4320 |
| Converter Type | MST Hub |
| Output Signal | DisplayPort |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 0.5 kg [1.2 lb] |
| Performance | |
| Maximum Digital Resolutions | 3840 x 2160 @30hz |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 105 mm [4.1 in] |
| Product Weight | 127 g [4.5 oz] |
| Product Width | 65 mm [2.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
| What's in the Box | |
| Included in Package | 4-Port Multi Monitor DisplayPort? MST Hub |
| Quick install guide | |
| Universal power adapter (NA/EU/UK/AUS) | |
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you?re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
| Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Screen 4 Resolution | Total % of Bandwidth |
|---|---|---|---|---|
| 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 88% |
| 1920x1200 @60hz (30%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 96% |
| 3840x2160 @30hz (38%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | off | 82% |
| 3840x2160 @30hz (38%) | 1920x1200 @30hz (30%) | 1920x1080 @60hz (22%) | off | 90% |
| Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Screen 4 Resolution | Total % of Bandwidth |
|---|---|---|---|---|
| 2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 136% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 136% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 2560x1440 @60hz (35%) | 1920x1200 @60hz (30%) | 141% |
| 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | off | 114% |
