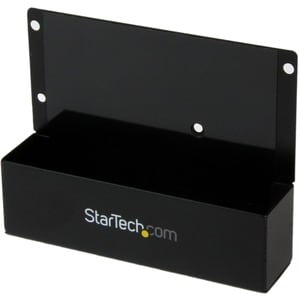

Startech Sata To 2.5in Or 3.5in Ide Hard Drive Adapter For Hdd Docks Sat2ideadp
The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your
2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based
HDD docking stations and drive duplicators. The SATA-IDE adapter features
all-metal construction that ensures maximum durability, and is fully compatible
with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily
mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay,
for quick and easy retrieval of data from older HDDs. The adapter can also be
used to install IDE hard drives into SATA-only desktop computers, or any other
scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking
Stations and Duplicators, including:
SATADOCK22UE
SATDOCK2UEGB
SATDOCK22RE
SATDOCK22R
SATDOCKU3S
SATADOCKU2
SATADOCKU2E
SATDOCK4U2E
SATDOCK4U3E
SATDOCKCRH
SATDOCKU3E
SATDOCKU2EGB
SATDOCKU2GB
Backed by 2-year warranty and free, lifetime technical support.
The StarTech.com Advantage
Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted
(upright) into a SATA HDD docking station or duplicator drive bay
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Warranty 2 Years
Hardware
Chipset ID Jmicron - JM20330
Compatible Drive Types (Type and Rate) IDE (ATA)
Drive Installation Fixed
Drive Size 2.5in & 3.5in
Fan(s) No
LBA support 48-bit
Number of Drives 1
Connector(s)
Connector Type(s) 1 - SP4 (4 pin; Small Drive Power) Male
Drive Connectors 1 - IDE (40 Pin; EIDE/PATA) Female
1 - IDE (44 Pin; EIDE/PATA; 2.5" HDD) Female
1 - LP4 (4 pin; Molex Large Drive Power) Female
Host Connectors 1 - SATA (7 pin; Data) Plug
1 - SATA Power (15 pin) Plug
Software
OS Compatibility OS independent; No software or drivers required
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1 in [26 mm]
Product Length 4 in [101 mm]
Product Weight 3.7 oz [104 g]
Product Width 3.1 in [78 mm]
Environmental
Humidity 8% ~ 90% RH
Operating Temperature 5?C to 80?C (41?F to 176?F)
Storage Temperature -40?C to 70?C (-40?F to 158?F)
Packaging Information
Shipping (Package) Weight 8.1 oz [230 g]
What's in the Box
Included in Package 1 - SATA to IDE adapter
1 - 40-pin IDE cable
1 - 40-pin to 44-pin IDE cable with power
1 - SP4 to LP4 Power cable
1 - Package of mounting screws
1 - Instruction Manual
Connector(s) | |
Connector Type(s) | SP4 (4 pin, Small Drive Power) Male |
Drive Connectors | IDE (40 Pin, EIDE/PATA) Female |
IDE (44 Pin, EIDE/PATA, 2.5" HDD) Female | |
LP4 (4 pin, Molex Large Drive Power) Female | |
Host Connectors | SATA (7 pin, Data) Plug |
SATA Power (15 pin) Plug | |
Environmental | |
Humidity | 8% ~ 90% RH |
Operating Temperature | 5?C to 80?C (41?F to 176?F) |
Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
Hardware | |
Chipset ID | JMicron - JM20330 |
Compatible Drive Types | IDE (ATA) |
Drive Installation | Fixed |
Drive Size | 2.5in & 3.5in |
Fan(s) | No |
LBA support | 48-bit |
Number of Drives | 1 |
Packaging Information | |
Shipping (Package) Weight | 230 g [8.1 oz] |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 26 mm [1 in] |
Product Length | 101 mm [4 in] |
Product Weight | 104 g [3.7 oz] |
Product Width | 78 mm [3.1 in] |
Software | |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |
Included in Package | 40-pin IDE cable |
40-pin to 44-pin IDE cable with power | |
Instruction Manual | |
Package of mounting screws | |
SATA to IDE adapter | |
SP4 to LP4 Power cable |
The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators, including:
- SATDOCK2REU3
- SDOCK2U33
- SDOCKU33EBV
- UNIDOCKU33
- SATADOCK22UE
- SATDOCK2UEGB
- SATDOCK22RE
- SATDOCK22R
- SATDOCKU3S
- SATADOCKU2
- SATADOCKU2E
- SATDOCK4U2E
- SATDOCK4U3E
- SATDOCKCRH
- SATDOCKU3E
- SATDOCKU2EGB
- SATDOCKU2GB
Backed by 2-year warranty and free, lifetime technical support.
