Startech Slim Usb 3.0 To Vga External Video Card Multi Monitor Adapter1920x1200 1080p Usb32vgaes

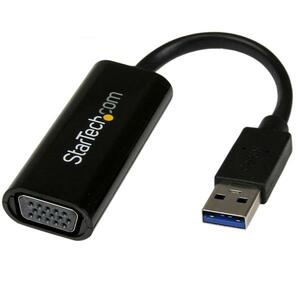

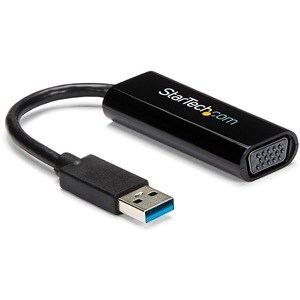

Slim USB 3.0 VGA External Video Card Adapter A920X1200/1080P
Manufacturer Part Number: USB32VGAES
Highlights
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA
solution for office applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to
be used with a VGA port. A cost-saving multi-monitor or dual display option that
can be used as an external graphics card for either laptop or desktop
applications.
The USB video adapter can be used with up to four additional (five total)
USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used
to further extend or mirror the desktop shown on the existing display - all
without having to open the computer case to add extra video cards.
Abstract
Connect a VGA display through this slim USB 3.0 Adapter for a multi-monitor
solution ideal for your Ultrabook® or Laptop. The USB32VGAES Slim USB 3.0 to VGA
Adapter turns a USB 3.0 port into a VGA output port with 1920x1200/1080p video
support. The adapter minimizes clutter with a slim design that seamlessly blends
with your video cable - an ideal space-saving solution for multi-monitor
applications on Ultrabook™, laptop, or desktop computers.
Functioning as an external graphics card, this USB to VGA adapter provides a
convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or
laptop computer (optimal performance from USB 3.0, backward compatible with USB
2.0).
To save space while travelling, this ultra-portable USB to VGA adapter features
a lightweight, small footprint design that fits easily in a laptop carrying bag.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter
delivers smooth, high-definition content to your VGA display/projector. The
adapter can be used to mirror your primary desktop, showing the same image on
each display, or to extend your desktop to double your workspace and increase
your productivity.
The USB32VGAES is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (Backwards compatible with USB 2.0)
Product Name Slim USB 3.0 VGA External Video Card Adapter A920X1200/1080P
Product Type Graphic Adapter
Chipset Manufacturer MCT
Chipset Model T5-302
Maximum Resolution 1920 x 1200
Host Interface USB 3.0
Analog Signal Yes
VGA Yes
Number of VGA Outputs 1
Height 0.5"
Width 1"
Form Factor External
Length 2.4"
Packaged Quantity 1
Platform Supported PC
System Requirements
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (Backwards compatible with USB 2.0)
Operating System(s):
Windows 8 (32/64)
Windows 8.1 (32/64)
Windows 7 (32/64)
Windows Vista (32/64)
Windows XP (32/64)
| Connector(s) | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Environmental | |
| Humidity | < 85% non-condensing |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 75?C (14?F to 167?F) |
| Hardware | |
| Chipset ID | MCT - T5-302 |
| Memory | 16MB DDRII SDRAM |
| Ports | 1 |
| USB Pass-Through | No |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0 lb] |
| Performance | |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| Maximum Analog Resolutions | 1920x1200/1080p |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 62 mm [2.4 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 12 mm [0.5 in] |
| Product Length | 190 mm [7.5 in] |
| Product Weight | 25 g [0.9 oz] |
| Product Width | 25 mm [1 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
| Special Notes / Requirements | |
| Note | Connect a maximum of five USB32VGAES adapters on a single PC - See manual for system requirements |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz RAM: 2GB or higher Full HD Video: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Slim USB 3.0 Video Adapter | |
The USB32VGAES Slim USB 3.0 to VGA Adapter turns a USB 3.0 port into a VGA output port with 1920x1200/1080p video support. The adapter minimizes clutter with a slim design that seamlessly blends with your video cable - an ideal space-saving solution for multi-monitor applications on Ultrabook™, laptop, or desktop computers.
Functioning as an external graphics card, this USB to VGA adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
To save space while travelling, this ultra-portable USB to VGA adapter features a lightweight, small footprint design that fits easily in a laptop carrying bag.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your VGA display/projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
The USB32VGAES is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (Backwards compatible with USB 2.0)
