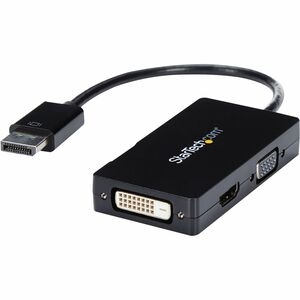

Startech Travel A/ V Adapter: 3-in-1 Displayport To Vga Dvi Or Hdmi Converter Dp2vgdvhd
The DP2VGDVHD DisplayPort to VGA, DVI or HDMI converter offers a compact
3-in-1 solution for connecting your DP-equipped desktop, laptop or Ultrabook™
computer to a VGA, DVI, or HDMI display.
Compatible with almost any display, television or projector, this versatile
converter provides the ideal plug-and-play solution for travel or BYOD (Bring
Your Own Device) applications around the office. With three of the most common
interfaces to choose from, the converter equips you to walk into any boardroom
ready to connect to an available display device, even if you don?t know what
connection ports will be available.
Connect to any available display device
For seamless connections from your DisplayPort-equipped computer, the converter
supports video resolutions up to 1920x1200/1080p, so you can convert a
DisplayPort video source to VGA, HDMI, or DVI without sacrificing video quality.
The DisplayPort converter offers a small footprint and lightweight design that
makes it easy to keep on hand without it taking up too much space in your laptop
bag.
Maximize portability
The DP2VGDVHD is backed by a 2-year StarTech.com warranty and free lifetime
technical support.
The StarTech.com Advantage
Maximize portability when traveling, or around the office, with a small
footprint, and lightweight design
Ensure compatibility with virtually any display with three-in-one adapter
converting DisplayPort to VGA, HDMI, or DVI
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio Yes
Converter Type Travel A/V Adapters
Output Signal DisplayPort
HDMI
Performance
Audio Specifications 5.1 Surround Sound (Video source and destination dependant)
Maximum Analog Resolutions 1920x1200/1080p
Maximum Digital Resolutions 1920x1200/1080p
Wide Screen Supported Yes
Connector(s)
Connector A 1 - DisplayPort (20 pin) Latching Male
Connector B 1 - DVI-D (25 pin) Female
1 - HDMI (19 pin) Female
1 - VGA (15 pin; High Density D-Sub) Female
Special Notes / Requirements
Note Only one video output is supported on the video adapter at a time. If
multiple connections are made, only one of the outputs will function.
Physical Characteristics
Product Height 0.6 in [15 mm]
Product Length 11.2 in [284 mm]
Product Weight 2 oz [56 g]
Product Width 1.8 in [45 mm]
Environmental
Humidity 10~85% RH
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -10?C to 80?C (14?F to 176?F)
Packaging Information
Shipping (Package) Weight 0.2 lb [0.1 kg]
What's in the Box
Included in Package 1 - DisplayPort to HDMI/VGA/DVI Adapter
1 - Installation Guide
| Connector(s) | |
| Connector A | DisplayPort (20 pin) Male Latching |
| Connector B | DVI-D (25 pin) Female |
| HDMI (19 pin) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 10~85% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Passive | |
| Adapter Style | Adapters |
| Audio | Yes |
| Converter Type | Travel A/V Adapters |
| Output Signal | DVI-D (DVI Digital) |
| HDMI | |
| VGA | |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Audio Specifications | 5.1 Surround Sound (Video source and destination dependant) |
| Maximum Analog Resolutions | 1920x1200/1080p |
| Maximum Digital Resolutions | 1920x1200/1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 284 mm [11.2 in] |
| Product Weight | 56 g [2 oz] |
| Product Width | 45 mm [1.8 in] |
| Special Notes / Requirements | |
| Note | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
| The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port. | |
| What's in the Box | |
| Included in Package | DisplayPort to HDMI/VGA/DVI Adapter |
| Installation Guide | |
The DP2VGDVHD DisplayPort to VGA, DVI or HDMI converter offers a compact 3-in-1 solution for connecting your DP-equipped desktop, laptop or Ultrabook™ computer to a VGA, DVI, or HDMI display.
Compatible with almost any display, television or projector, this versatile converter provides the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office. With three of the most common interfaces to choose from, the converter equips you to walk into any boardroom ready to connect to an available display device, even if you don’t know what connection ports will be available.
For seamless connections from your DisplayPort-equipped computer, the converter supports video resolutions up to 1920x1200/1080p, so you can convert a DisplayPort video source to VGA, HDMI, or DVI without sacrificing video quality.
The DisplayPort converter offers a small footprint and lightweight design that makes it easy to keep on hand without it taking up too much space in your laptop bag.
The DP2VGDVHD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
