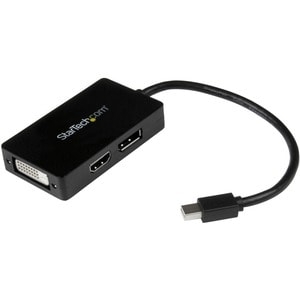

Startech Travel A/ V Adapter: 3-in-1 Mini Displayport To Displayport Dvi Or Hdmi Converter Mdp2dpdvhd
The MDP2DPDVHD mini DisplayPort® to DisplayPort®, DVI or HDMI® Multifunction
Adapter converts a mini DisplayPort (mDP®) input to DisplayPort, DVI or HDMI
output signals - all in a single compact adapter.
This multifunction adapter offers the unique ability to connect almost any
display to your mini DisplayPort equipped PC or Mac, providing the perfect
solution for business environments that have mixed display hardware - saving the
expense of purchasing new displays for compatibility. A plug-and-play solution
that requires no software or drivers, this versatile mDP adapter offers a quick
and simple installation for the utmost convenience.
Connect to any HDMI or VGA Display
Compatible with Intel® Thunderbolt™, when connected directly to a supporting
DisplayPort over Thunderbolt™ I/O port.
Maximize portability
This adapter allows for audio pass-through if supported by the video source.
Please review the video source manual to confirm support.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Adapting mini DisplayPort to 3 different output signals in a single adapter
provides maximum flexibility for connecting almost any display
Compact design provides portability and minimizes workspace disruption
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio Yes
Converter Type Travel A/V Adapters
Output Signal DisplayPort
DVI-D (DVI Digital)
HDMI
Performance
Audio Specifications 5.1 Surround Sound
Maximum Digital Resolutions DisplayPort: 2560x1600
DVI/HDMI; 1920x1200
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - DisplayPort (20 pin) Female
1 - DVI-D (25 pin) Female
1 - HDMI (19 pin) Female
Physical Characteristics
Cable Length 5.9 in [150 mm]
Color Black
Enclosure Type Plastic
Product Height 0.6 in [15 mm]
Product Length 9.4 in [240 mm]
Product Weight 1.6 oz [45 g]
Product Width 1.8 in [45 mm]
Environmental
Humidity 10~85% RH
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -10?C to 80?C (14?F to 176?F)
Packaging Information
Shipping (Package) Weight 0.1 lb [0.1 kg]
What's in the Box
Included in Package 1 - MDP to DP/DVI/HDMI Adapter
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DisplayPort (20 pin) Female |
| DVI-D (25 pin) Female | |
| HDMI (19 pin) Female | |
| Environmental | |
| Humidity | 10~85% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Adapters |
| Audio | Yes |
| Converter Type | Travel A/V Adapters |
| Output Signal | DisplayPort |
| DVI-D (DVI Digital) | |
| HDMI | |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.1 lb] |
| Performance | |
| Audio Specifications | 5.1 Surround Sound |
| Maximum Digital Resolutions | DisplayPort: 2560x1600 DVI/HDMI; 1920x1200 |
| Physical Characteristics | |
| Cable Length | 150 mm [5.9 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 240 mm [9.4 in] |
| Product Weight | 45 g [1.6 oz] |
| Product Width | 45 mm [1.8 in] |
| What's in the Box | |
| Included in Package | MDP to DP/DVI/HDMI Adapter |
The MDP2DPDVHD mini DisplayPort® to DisplayPort®, DVI or HDMI® Multifunction Adapter converts a mini DisplayPort (mDP®) input to DisplayPort, DVI or HDMI output signals - all in a single compact adapter.
This multifunction adapter offers the unique ability to connect almost any display to your mini DisplayPort equipped PC or Mac, providing the perfect solution for business environments that have mixed display hardware - saving the expense of purchasing new displays for compatibility. A plug-and-play solution that requires no software or drivers, this versatile mDP adapter offers a quick and simple installation for the utmost convenience.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
